Project Description

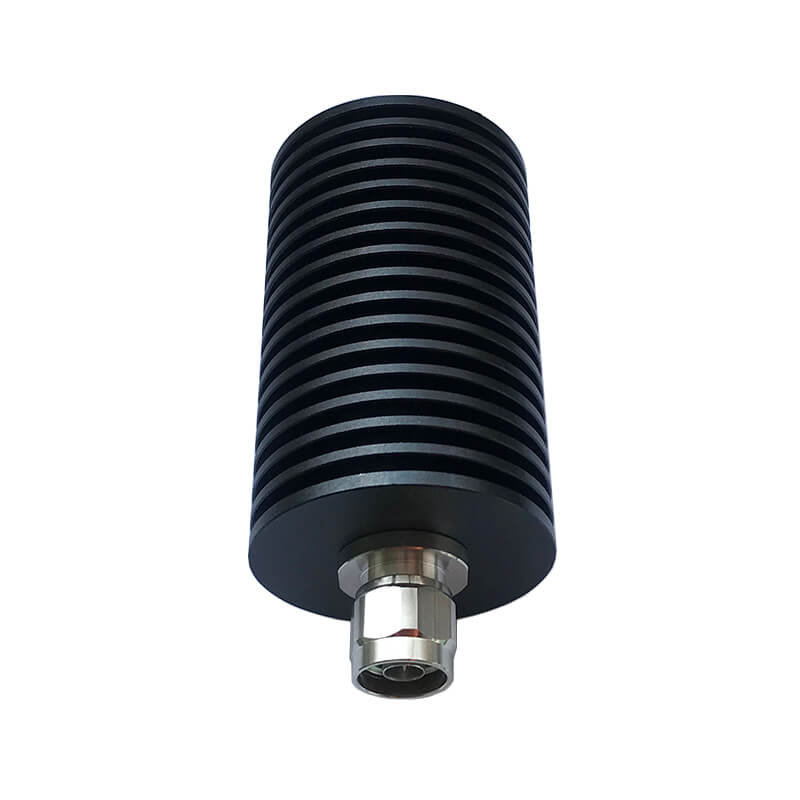

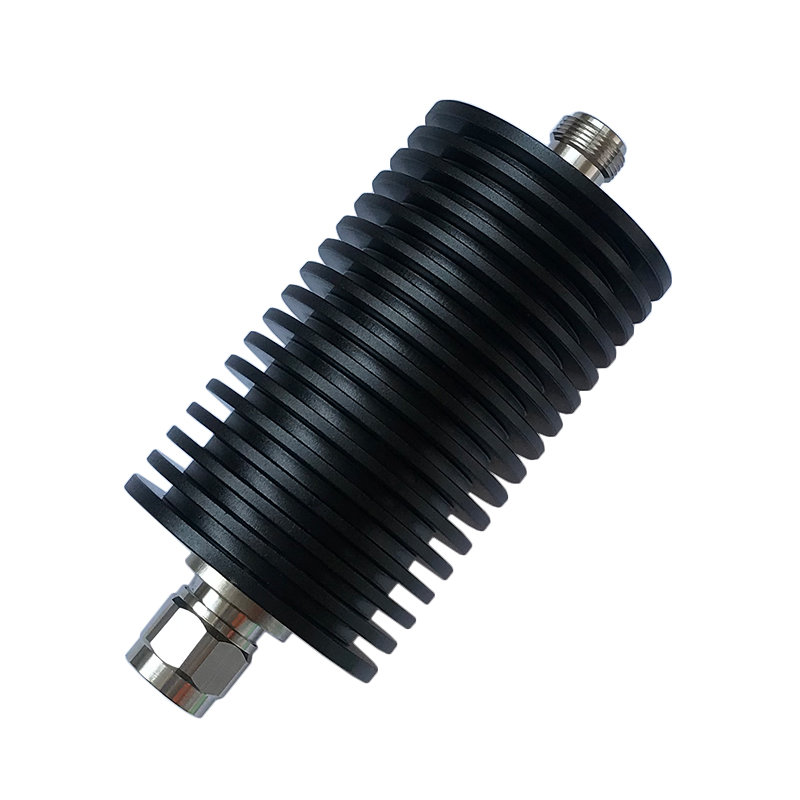

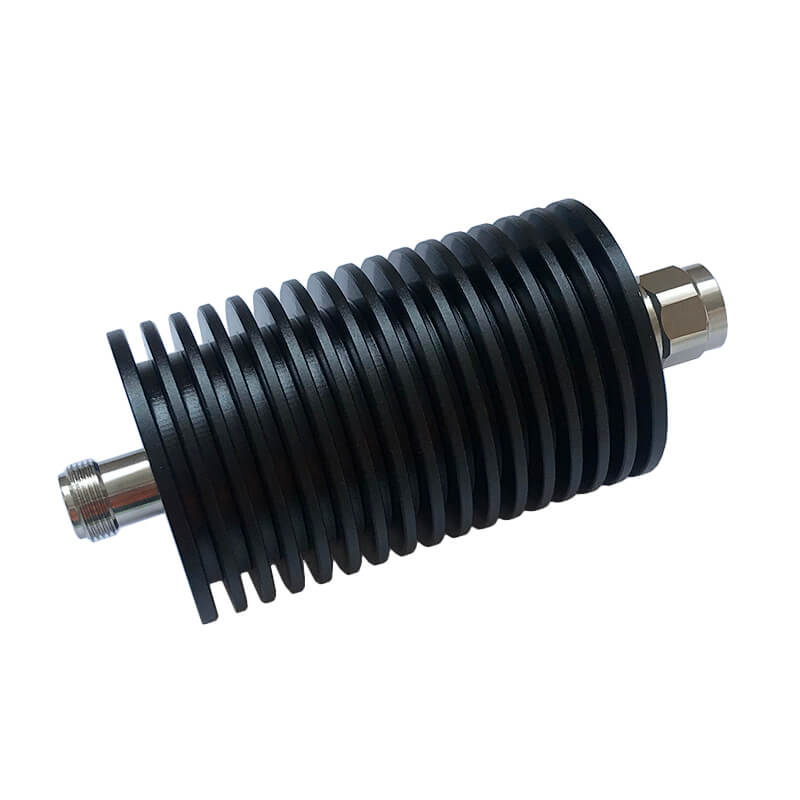

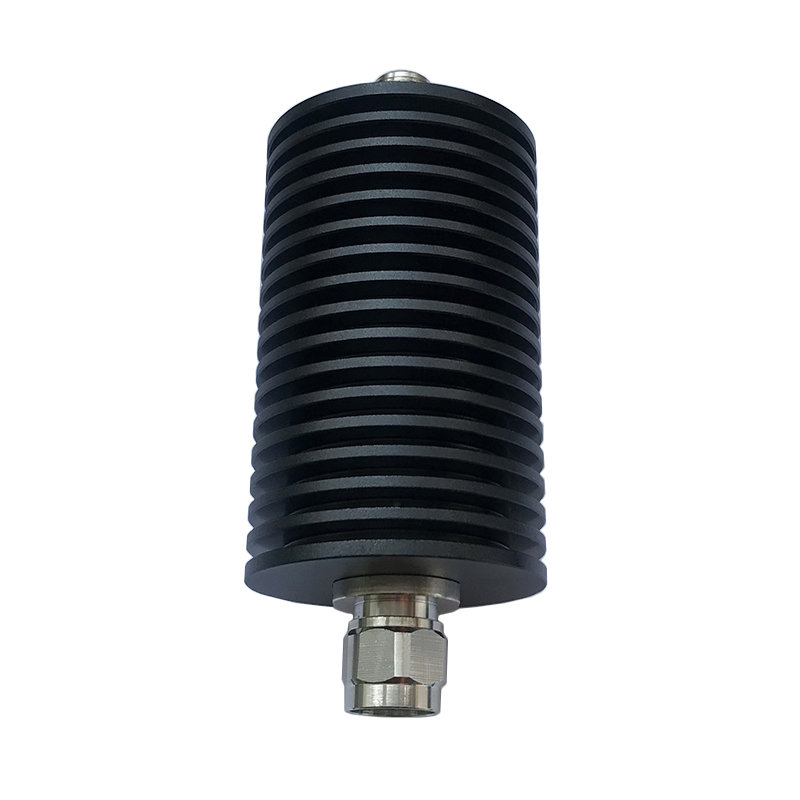

100W N-JK Attenuator DC-3/4/8/18GHz 1-50dB avaliable

Specification Parameter
Model BC-AT100-01
Power 100W
Connector N-JK
Frequency Range DC-3GHz/4GHz/8GHz/10GHz/18GHz
Attenuation 1, 2, 3, 5, 6, 10, 15, 20, 30, 40, 50dB available, and 1-10dB.±0.5dB,15-30dB±1dB, 40-50dB±1.5dB
VSWR (MAX) 1.2:1 /1.3:1/:1.4:1
Impendance 50Ω
Temperature Range -55°C to +125°C

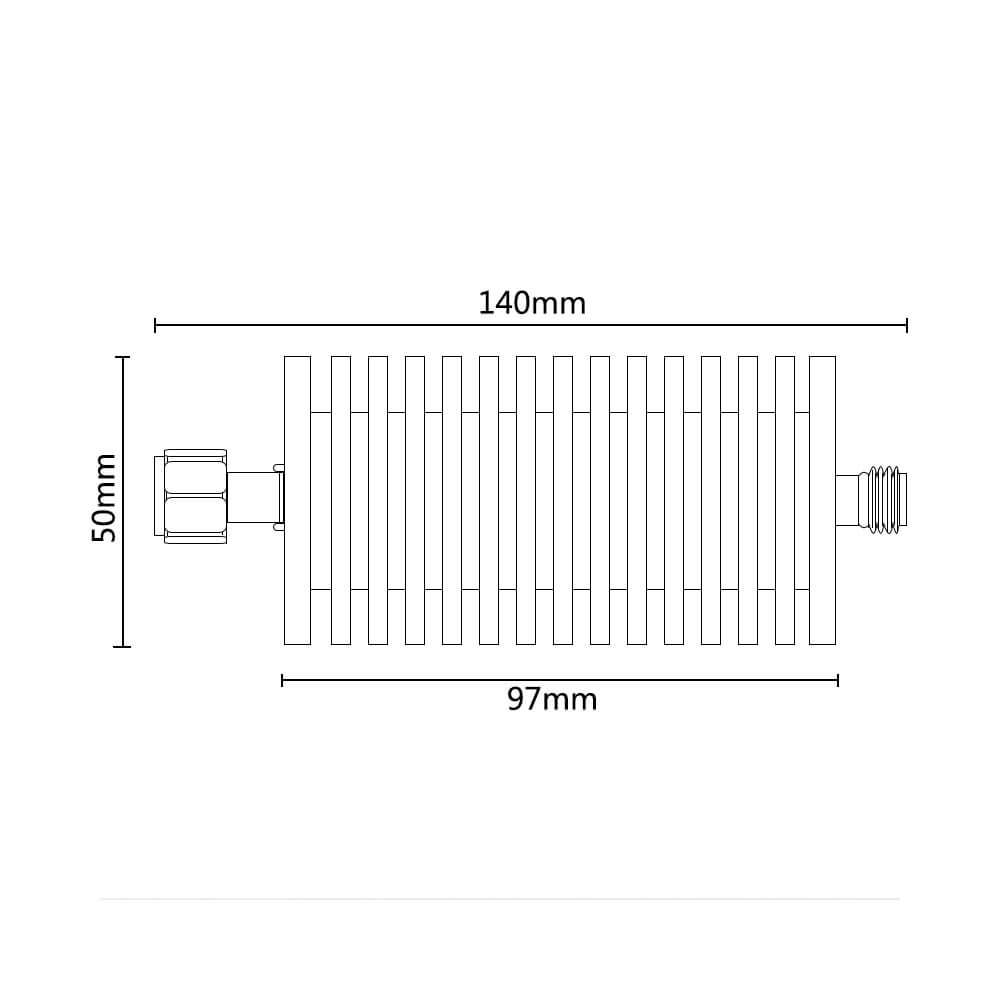

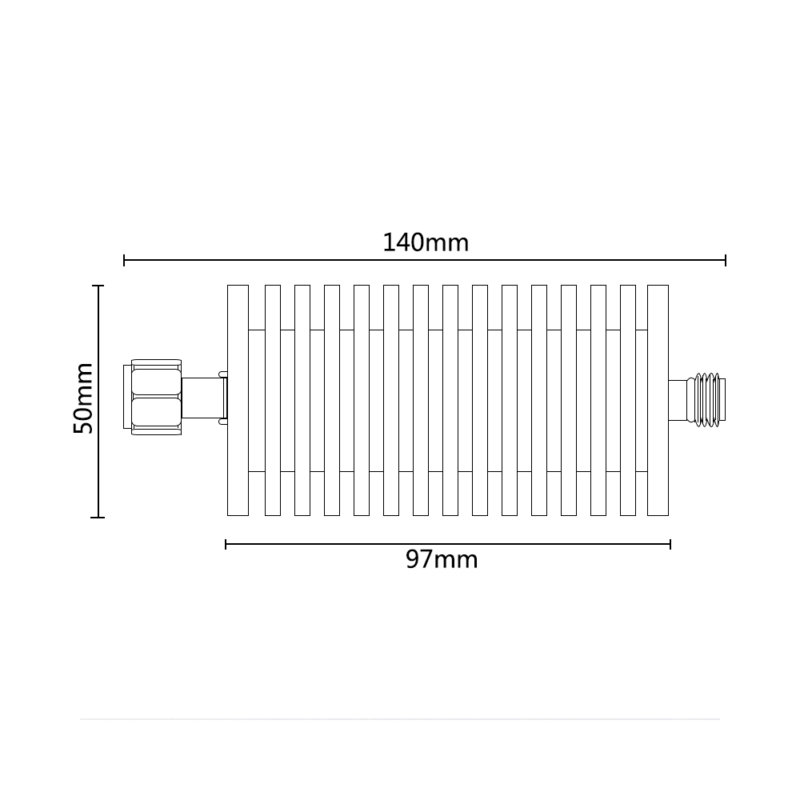

Dimension 140*50mm
Weight 0.7kg
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

This is the test report of one attenuation. if you want to see more report of other attenuations, please contact us now!
TEST REPORT

Application:

N-JK 100W RF Attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems

We could do DIN-J/N-K or N-KK for this product. If you have any other request, please contact us now.
