Project Description

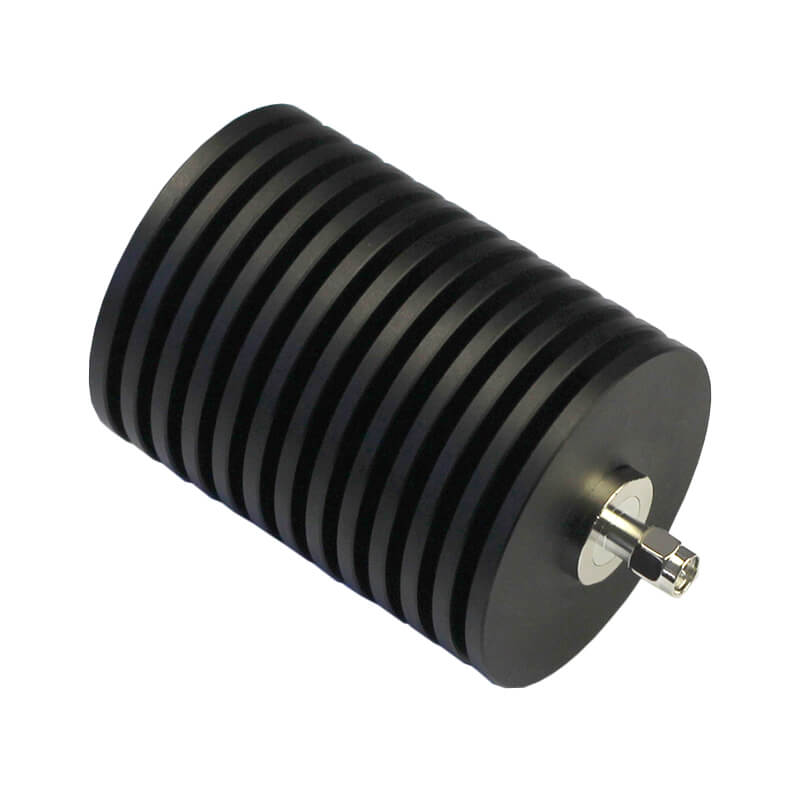

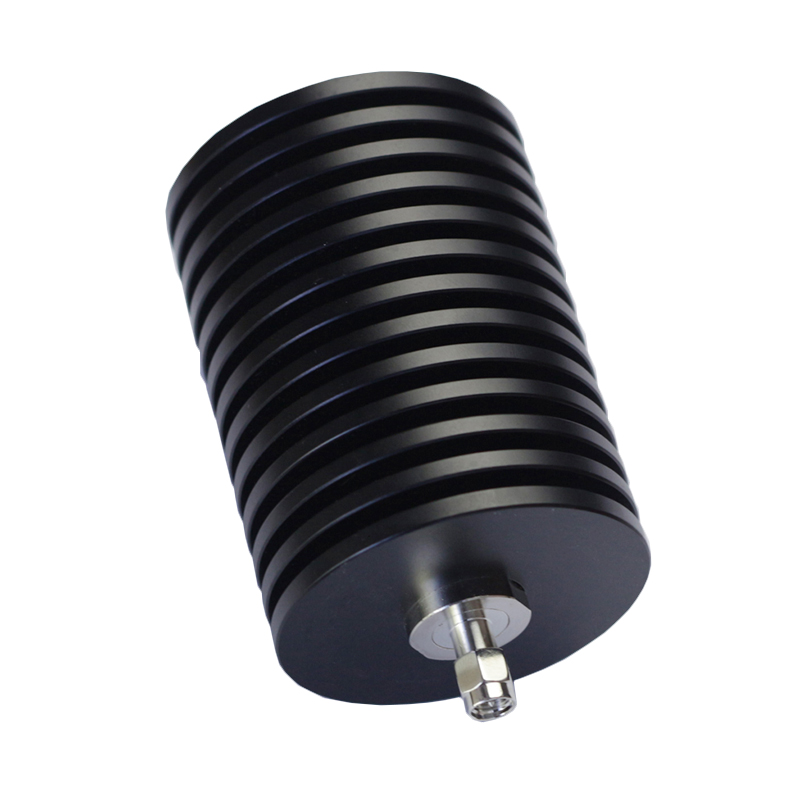

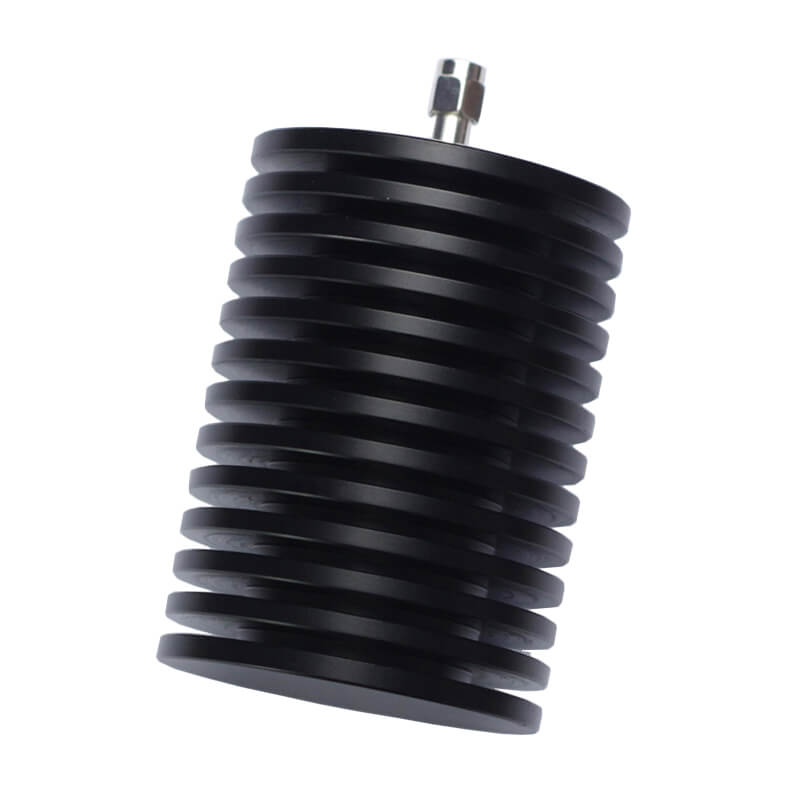

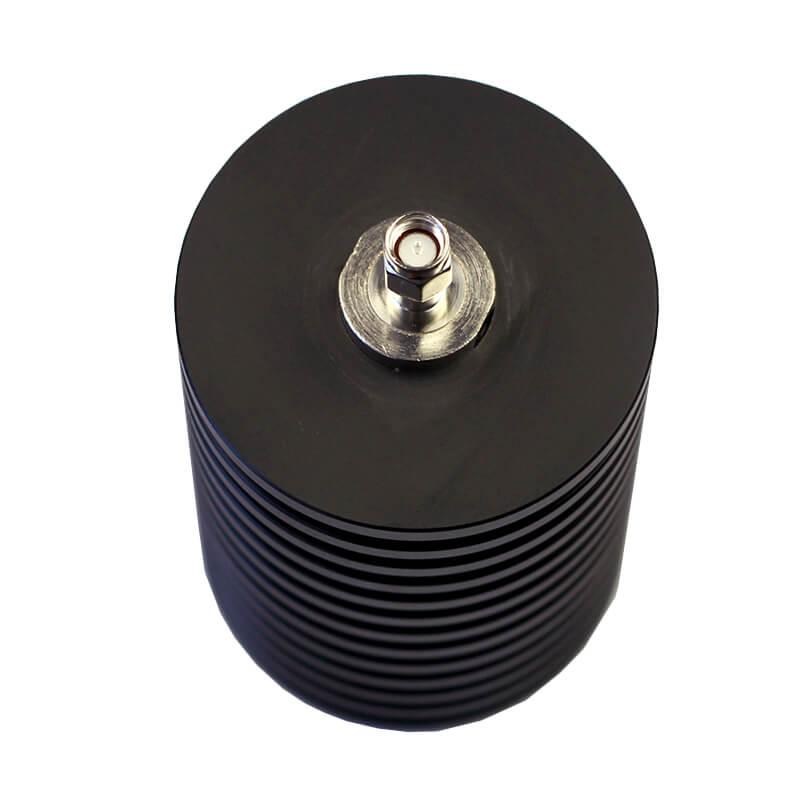

100W SMA-J DC-3GHz Dummy Load
| Specification | Parameter |
|---|---|
| Model | BC-TE100-08 |
| Power | 100W |
| Connector | SMA-J |
| Frequency Range | DC-3GHz |
| VSWR (MAX) | 1.2:1 |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |
| Dimension | 98*60mm |
| Weight | 450g |
TEST REPORT
TEST REPORT
This is the test report for 3GHz, If you want to see the report of other frequency range, please contact us for it now.
TEST REPORT
Application:
100W RF Dummy Load (SMA, DC-3GHz) are used in a wide variety of measurement systems; any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accurate measurement. Terminations are also used in devices such as directional couplers and isolators
