Project Description
150W N, 7/16 Attenuator DC-10GHz 3-40dB avaliable
| Specification | Parameter |
|---|---|
| Model | BC-DTS150-10 |
| Power | 150W |
| Connector | N,7/16 (DC-4GHz) |
| Frequency Range | DC-10GHz |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |

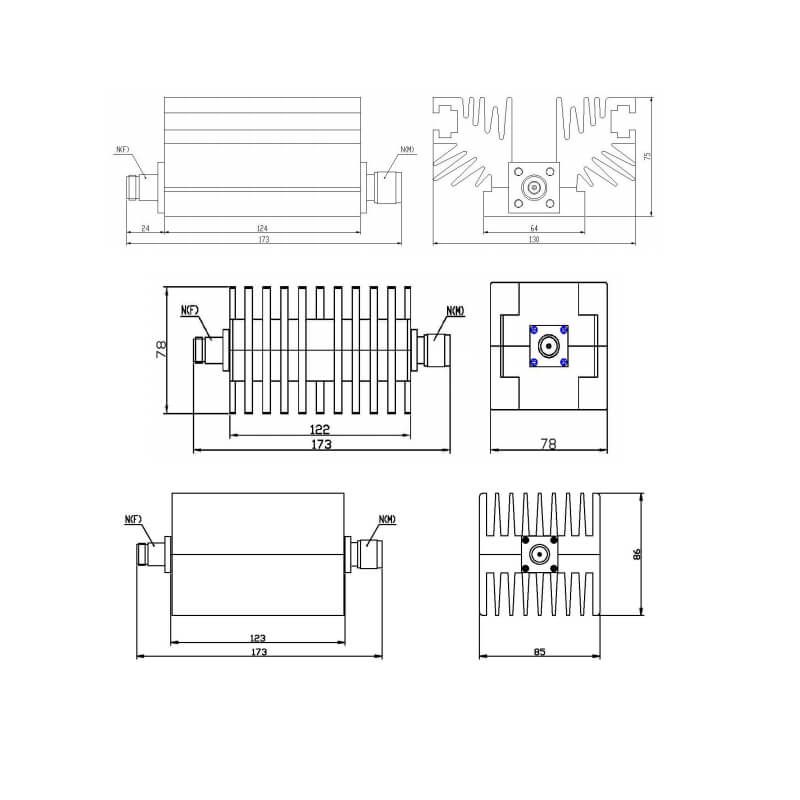

| Dimension | A:173×130×75mm; B:173×78×78mm; E2: 85×86×173mm |
| Weight | A:1.5Kg; B:1.5Kg; E2:1.5Kg |
Application:
150W DC-10GHz coaxial fixed attenuator is widely used in below fileds:
Mobile Communication Network Optimization and In-door distribution system.
Cluster communication, satellite communication, shortwave communication and hopping radio.
Radar, electronic navigation and electronic confrontation.
Aerospace equipment systems
