Project Description

150W N, TNC Attenuator DC-18GHz 3-50dB avaliable

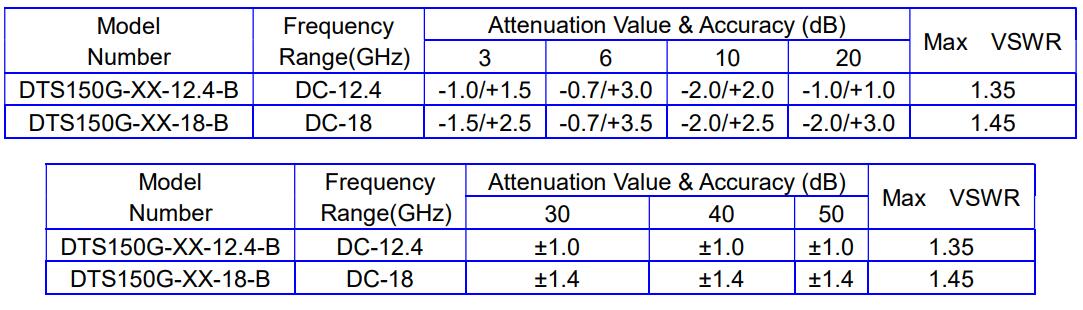

Specification Parameter
Model BC-DTS150G-B-18
Power 150W
Connector N,TNC
Frequency Range DC-18GHz
Impendance 50Ω
Temperature Range -55°C to +125°C
Dimension Ø63×306×92mm
Weight 0.95kg

DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD

Application:

150W DC-18GHz coaxial fixed attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
