Project Description

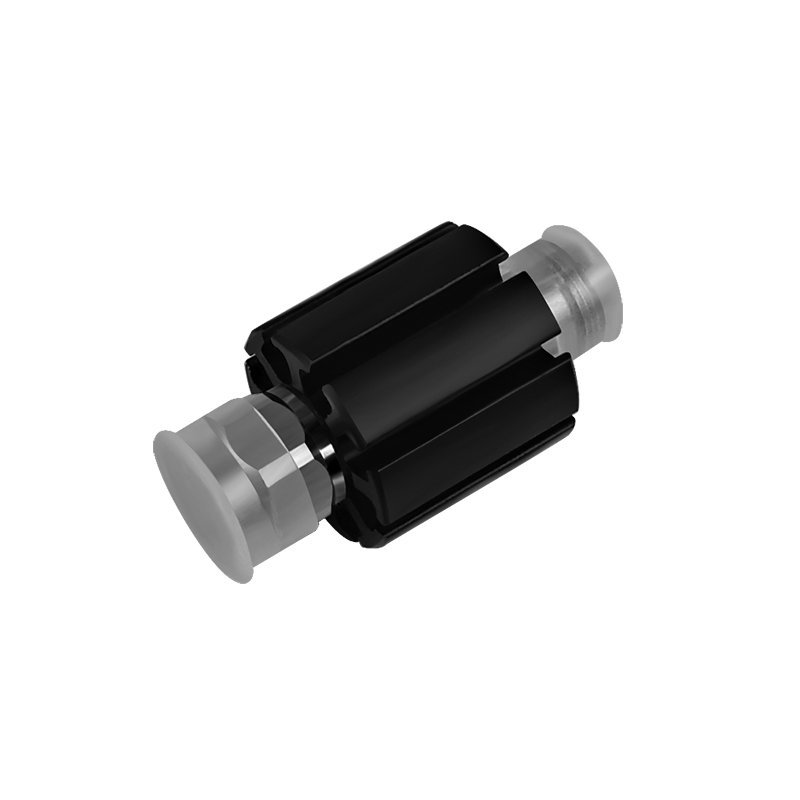

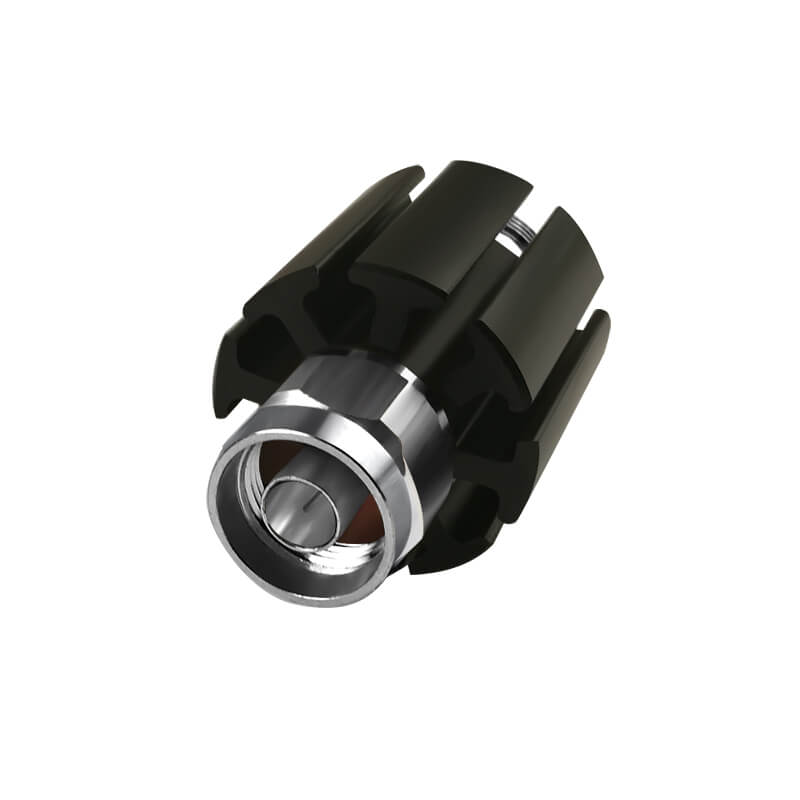

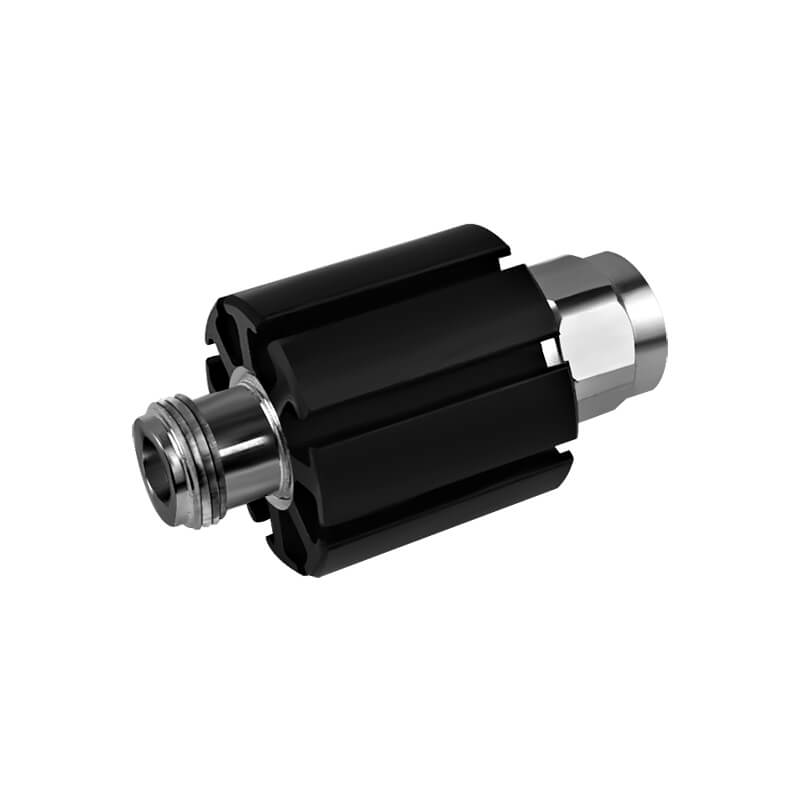

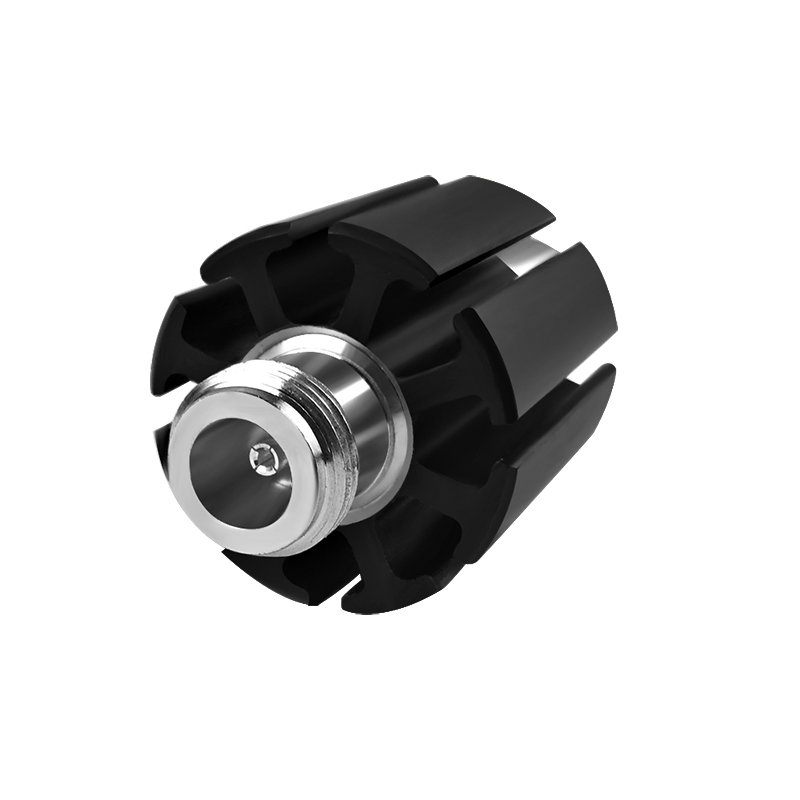

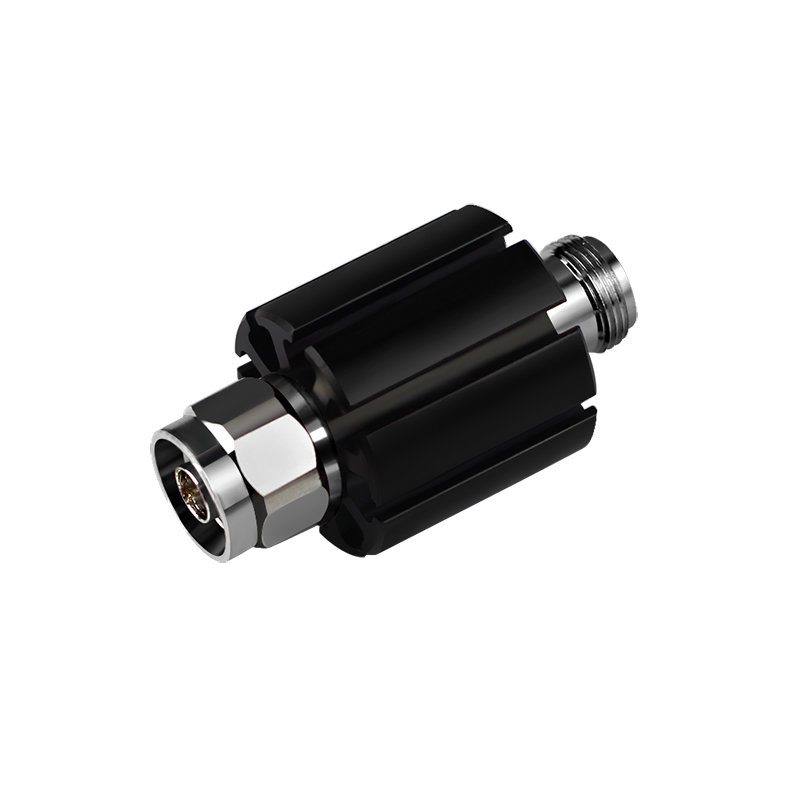

15W N Male to N Female Attenuator DC-3GHz/4GHz 1-40dB available

Specification Parameter
Model BC-AT15-01
Power 15W
Connector N-JK
Frequency Range DC-3GHz/4GHz
Attenuation 1,2,3,5,6,10,15,20,30,40dB available, and 1-10dB.±0.5dB,15-30dB±1dB, 40dB±1dB
VSWR (MAX) 1.2:1
Impendance 50Ω
Temperature Range -55°C to +125°C

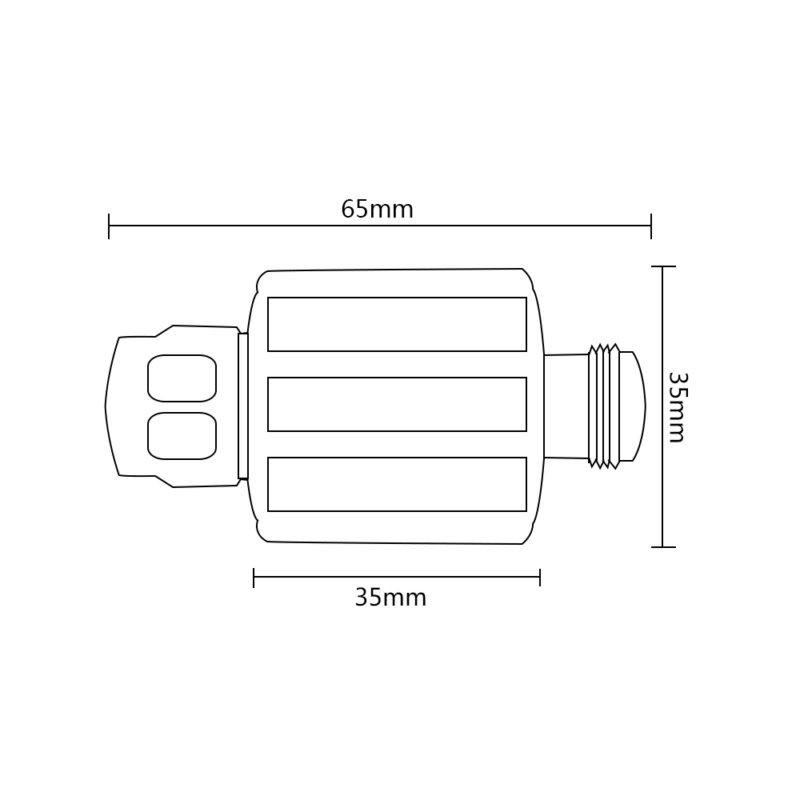

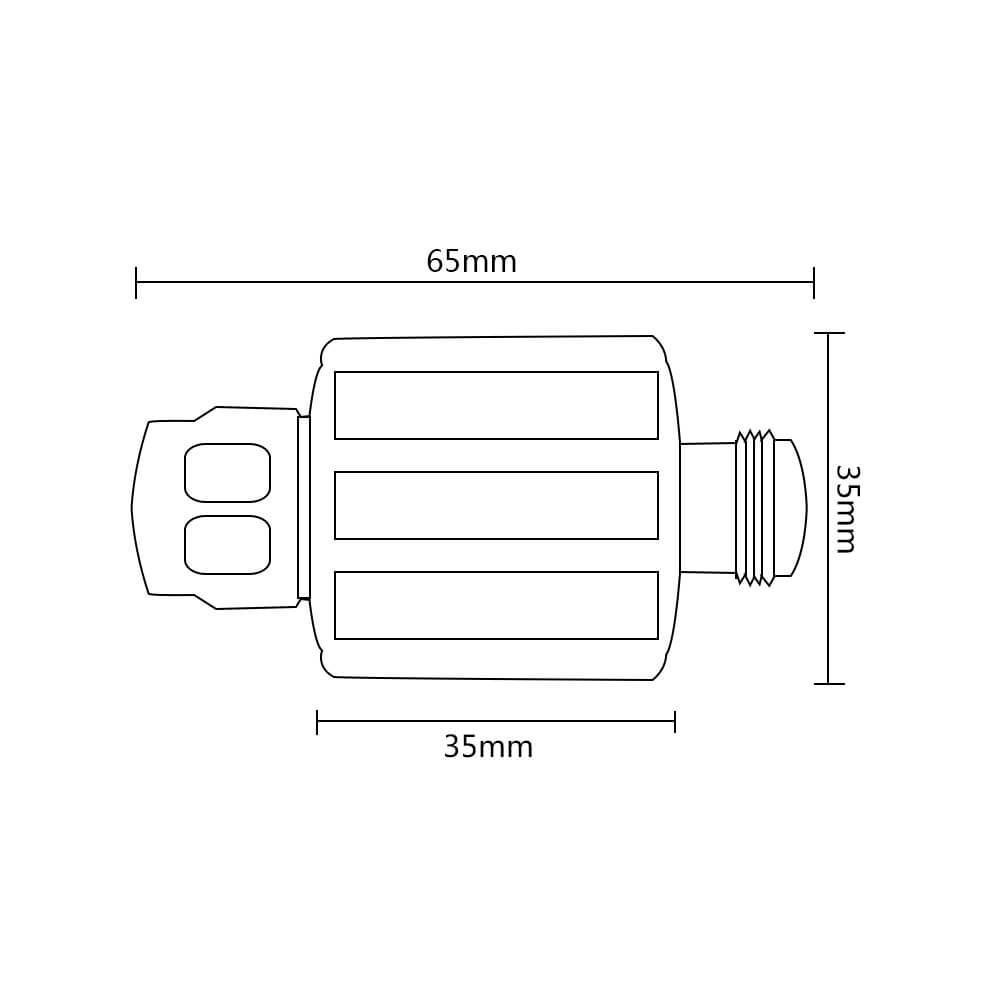

Dimension 65*35mm
Weight 170g
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

This is the test report of one attenuation. if you want to see more report of other attenuations, please contact us now!
TEST REPORT

Application:

15W DC-3/4GHz RF Microwave Attenuator  is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
