Project Description

200W N, 7/16 Attenuator DC-10GHz 10. 20. 30. 40dB avaliable

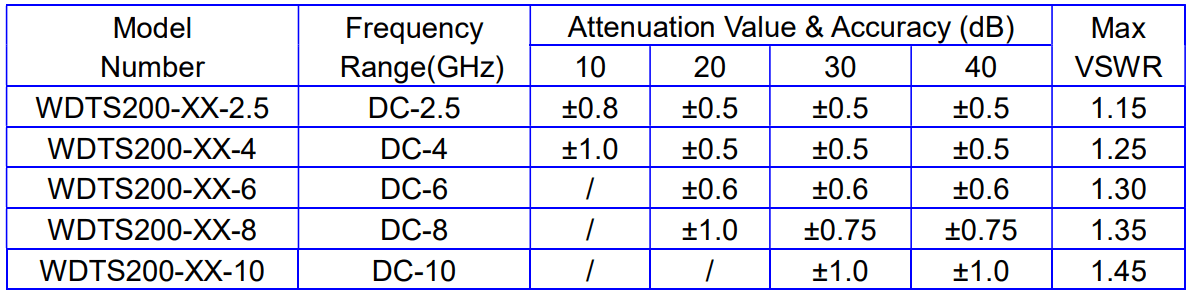

Specification Parameter
Model BC-WDTS200-10
Power 200W
Connector N,7/16 (DC-4GHz)
Frequency Range DC-10GHz
Impendance 50Ω
Temperature Range -55°C to +125°C
Dimension A:234×130×75mm; B:234×78×78mm; E2:234×85×86mm
Weight A:2.2Kg; B:2.3Kg; E2:2.2Kg

DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD

Application:

200W DC-10GHz coaxial fixed attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
