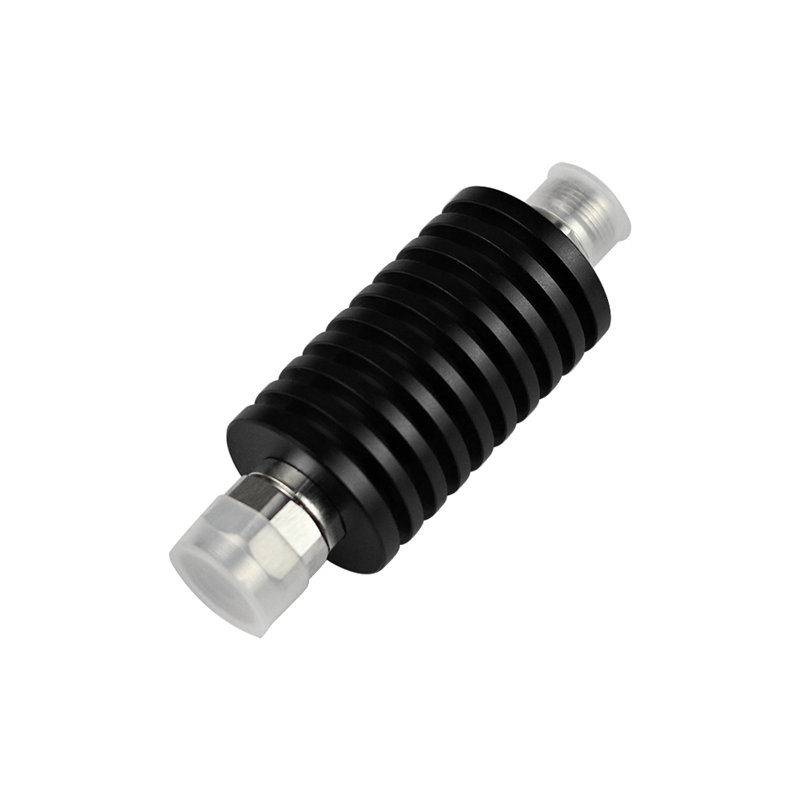

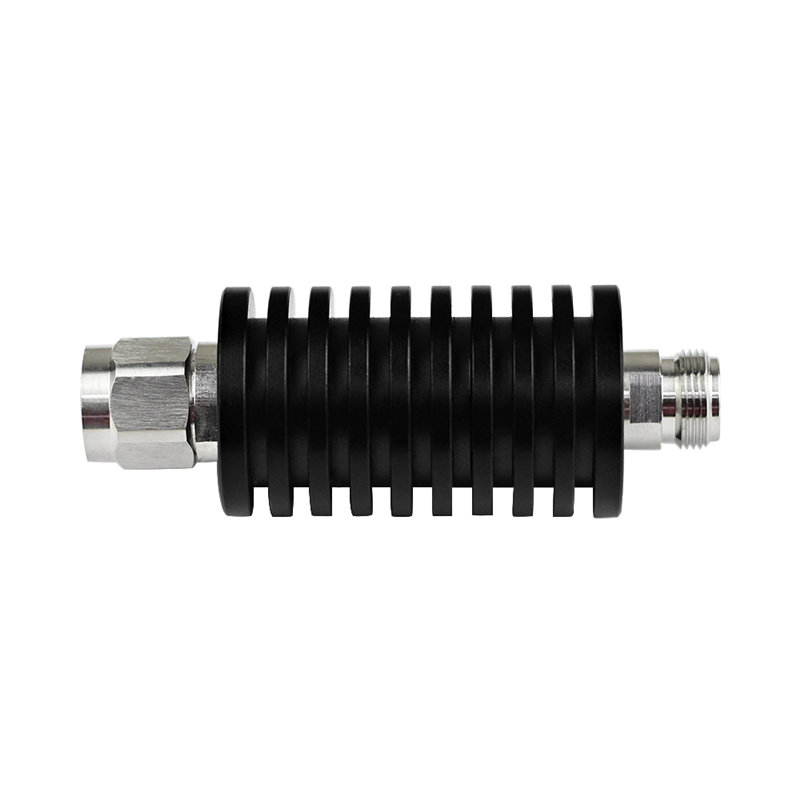

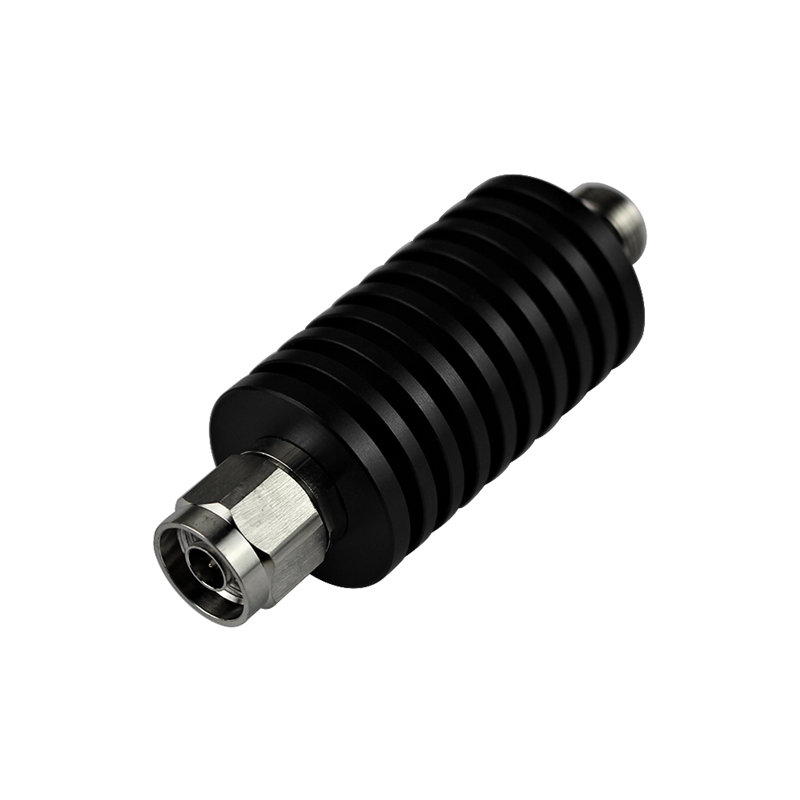

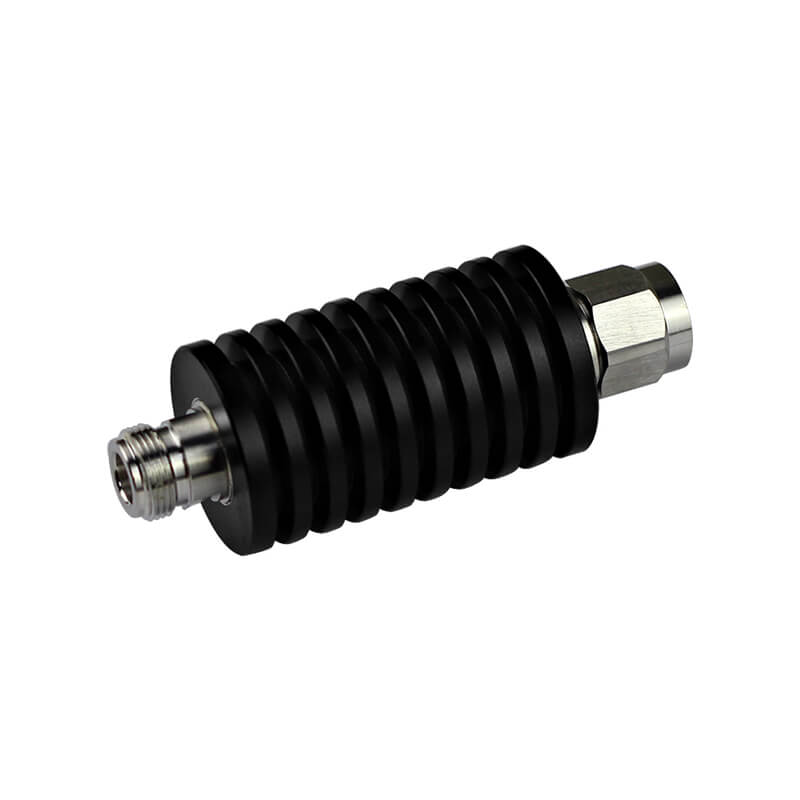

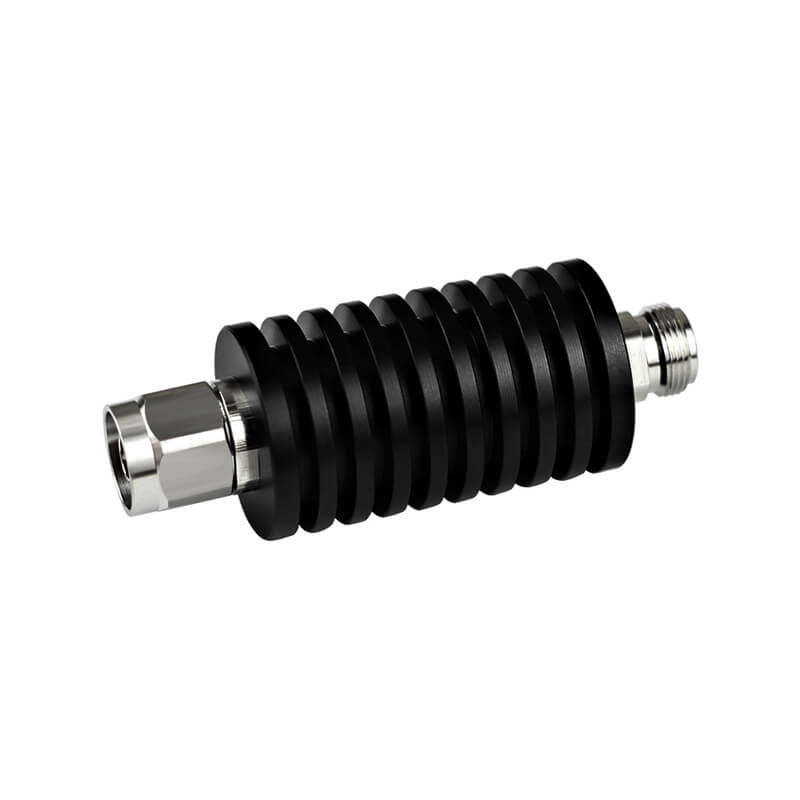

20W N-JK DC-3GHz/4GHz 1-40dB 50Ohm Fixed Attenuator
| Specification | Parameter |
|---|---|
| Model | BC-AT20-01 |
| Power | 20W |
| Connector | N-JK |
| Frequency Range | DC-3GHz/4GHz |
| Attenuation | 1,2,3,5,6,10,15,20,30,40dB available, and 1-10dB.±0.5dB,15-40dB±1dB |
| VSWR (MAX) | 1.2:1 |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |

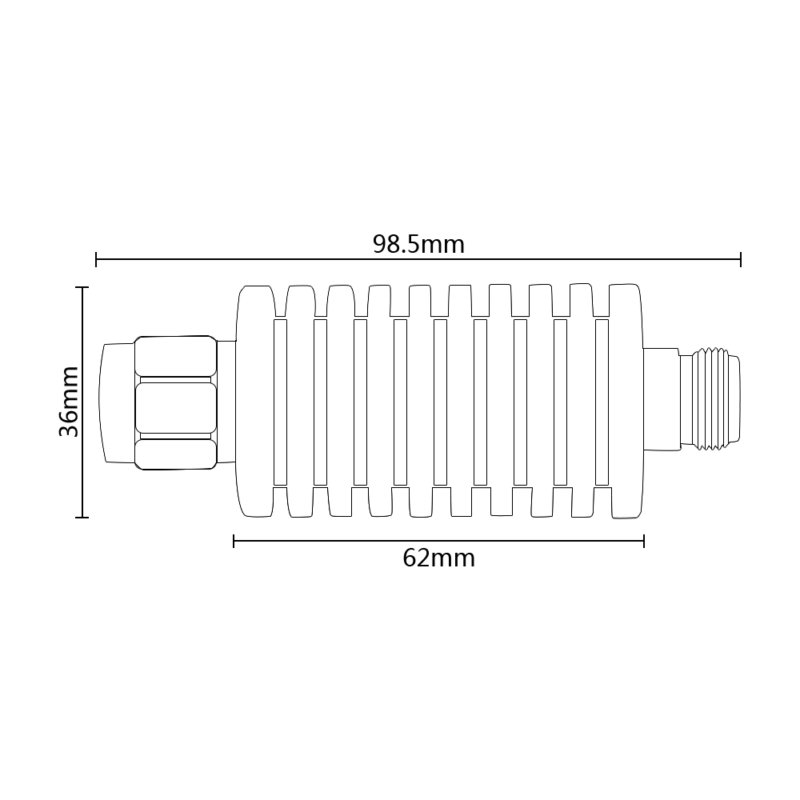

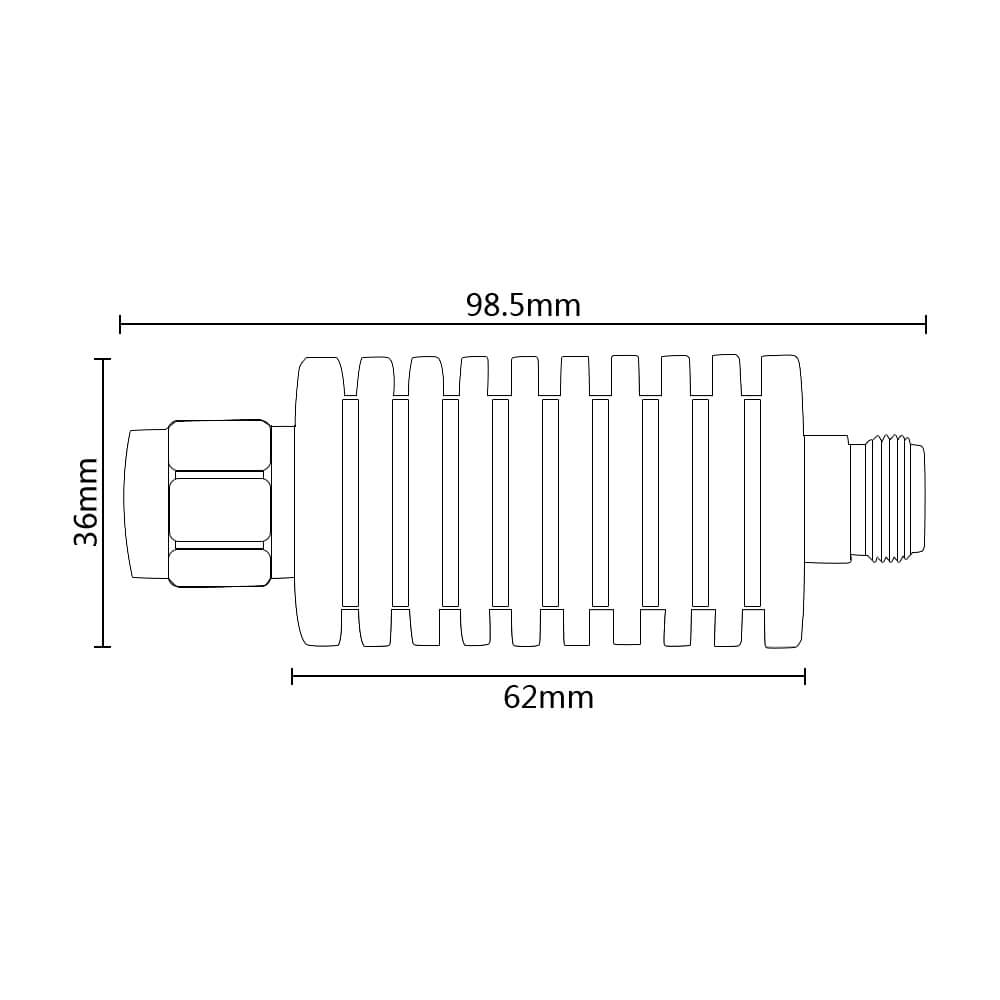

| Dimension | 98.5*36mm |
| Weight | 0.2Kg |
TEST REPORT
TEST REPORT
This is the test report of one attenuation. if you want to see more report of other attenuations, please contact us now!
TEST REPORT
Application:
20W Attenuator N Type DC-3/4GHz is widely used in below fileds:
Mobile Communication Network Optimization and In-door distribution system.
Cluster communication, satellite communication, shortwave communication and hopping radio.
Radar, electronic navigation and electronic confrontation.
Aerospace equipment systems
