Project Description

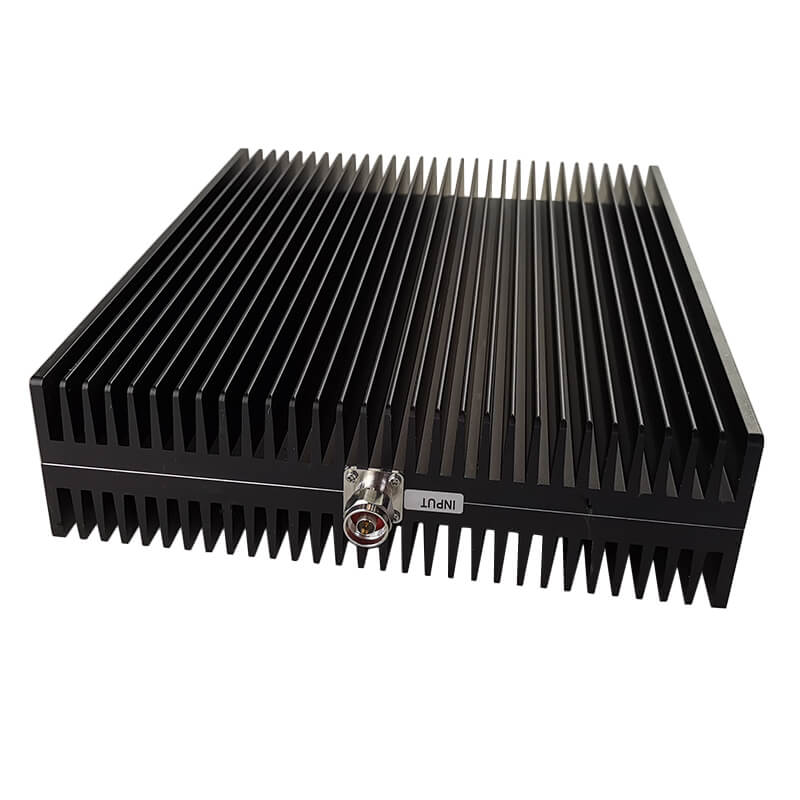

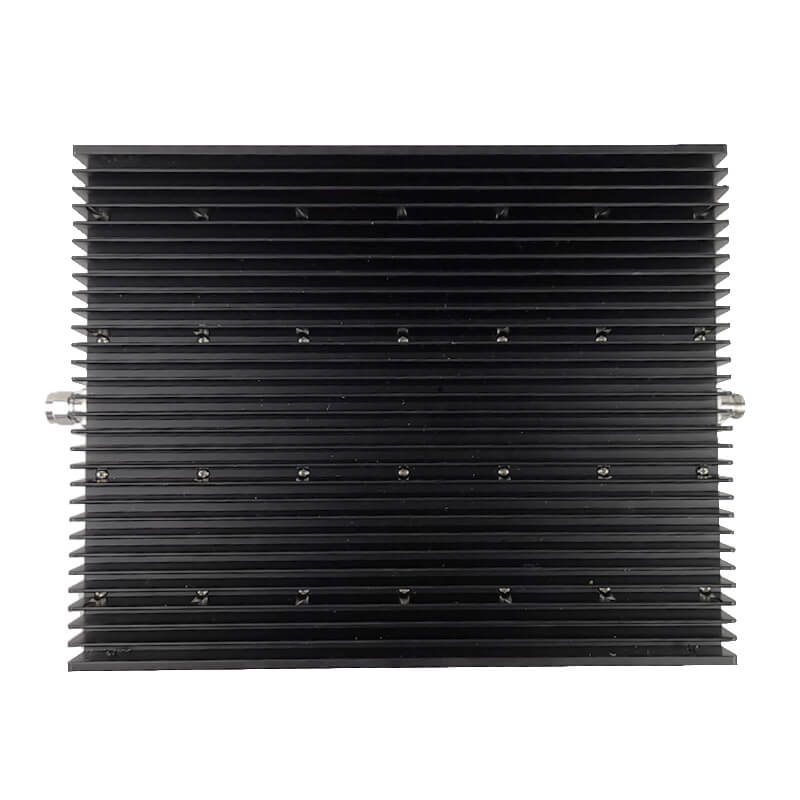

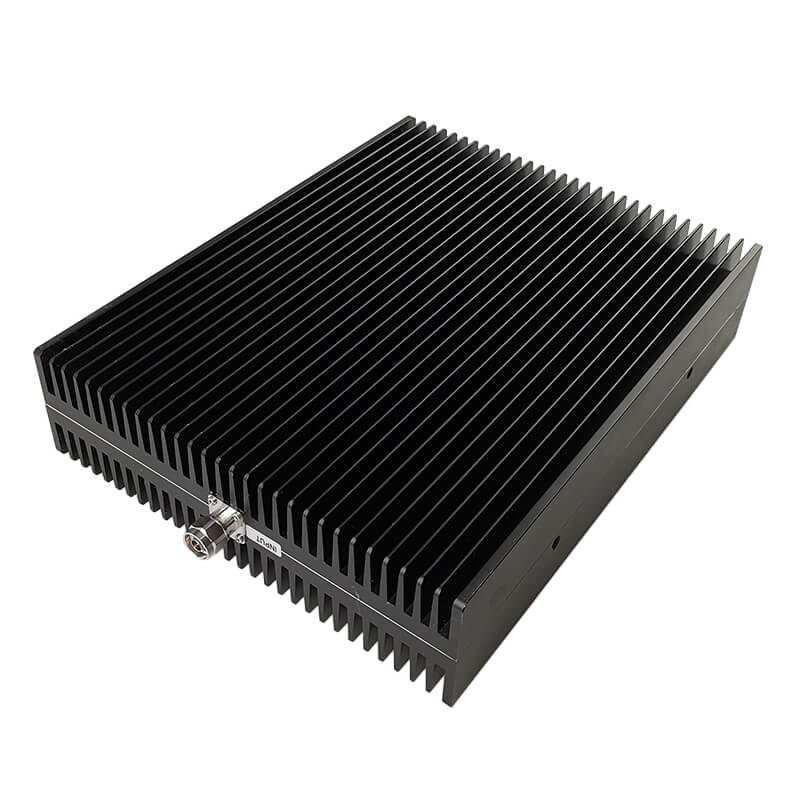

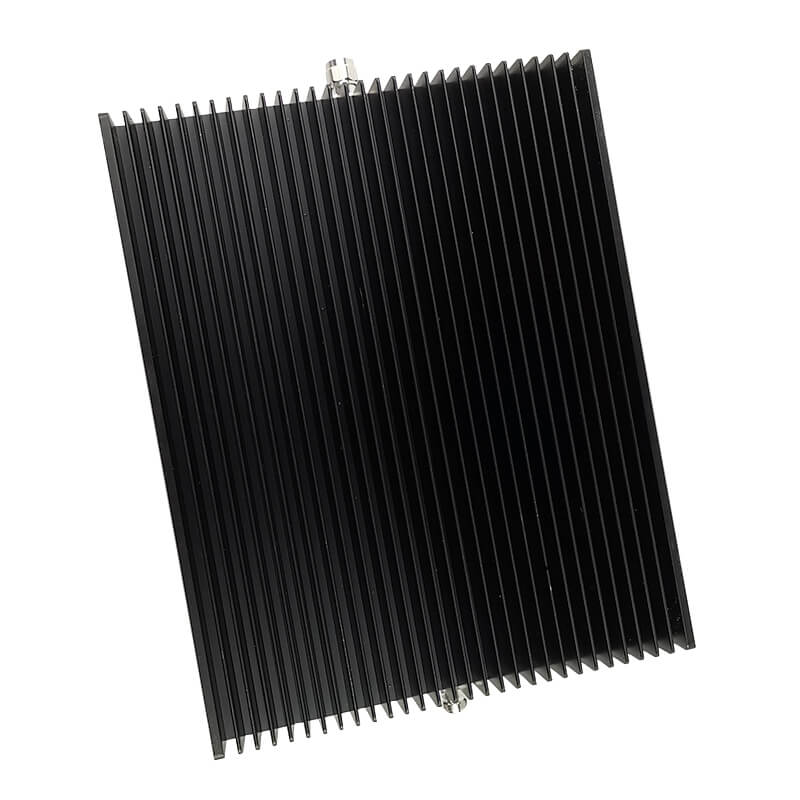

High Power 500W N-JK Attenuator DC-3/4/10/20GHz 1-50dB

Specification Parameter
Model BC-AT500-01
Power 500W
Connector N-JK
Frequency Range DC-3/4/10/20G
Attenuation 1-60dB available, and 1-10dB.±0.5dB,15-30dB±1dB,40-60dB±2dB
VSWR (MAX) 1.2:1
Impendance 50Ω
Temperature Range -55°C to +125°C

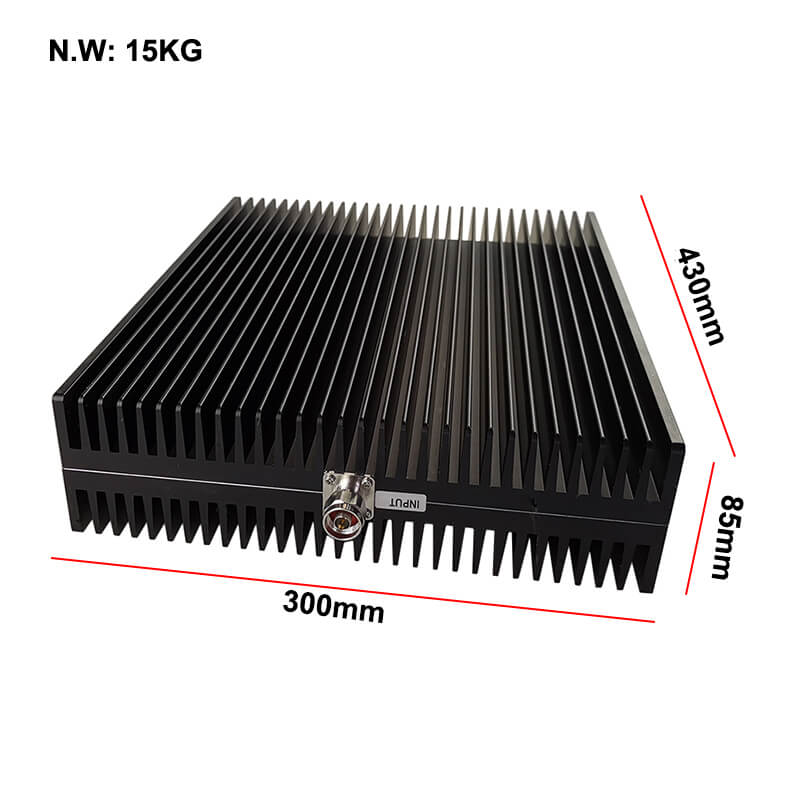

Dimension
Weight 15kg
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

This is the test report of one attenuation. if you want to see me report of attenuation , please contact us now.
TEST REPORT

Application:

500W coaxial fixed attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
