Project Description

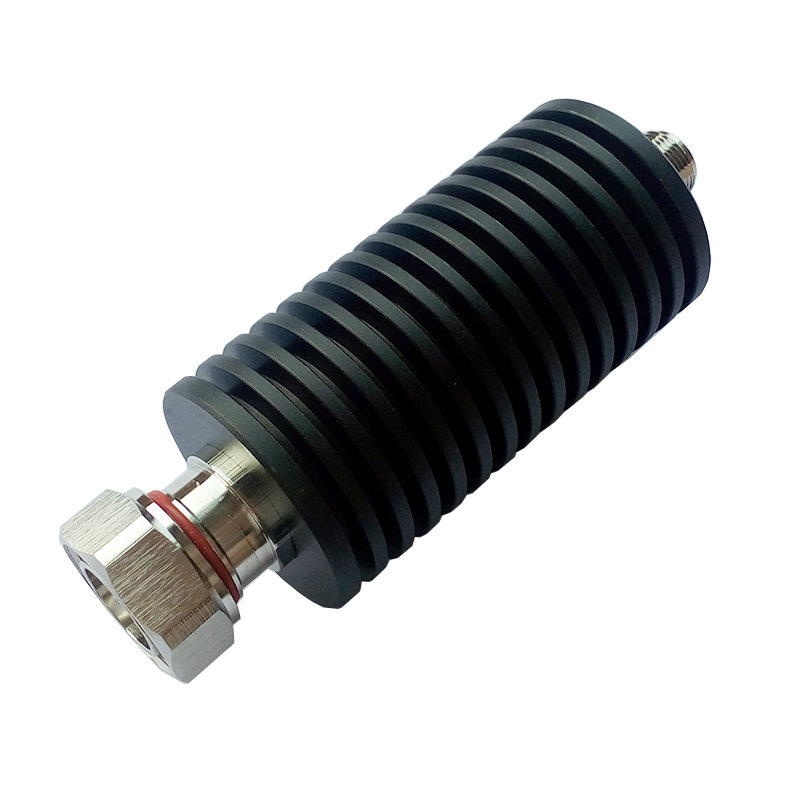

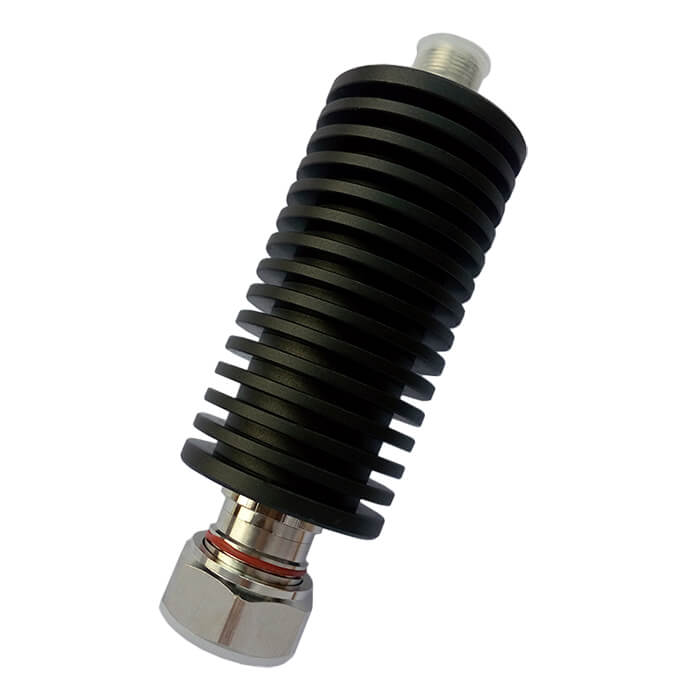

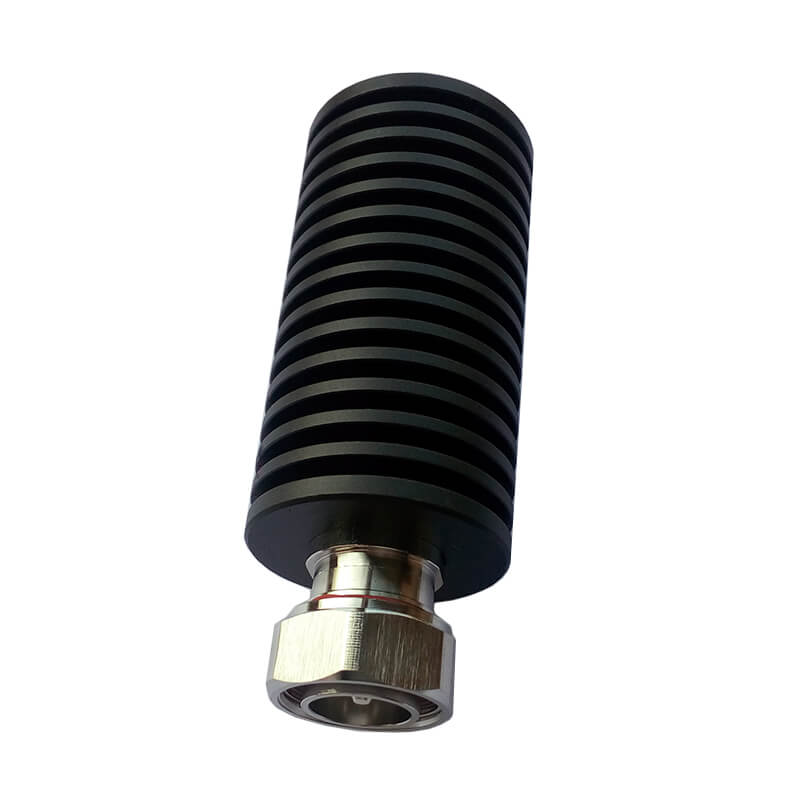

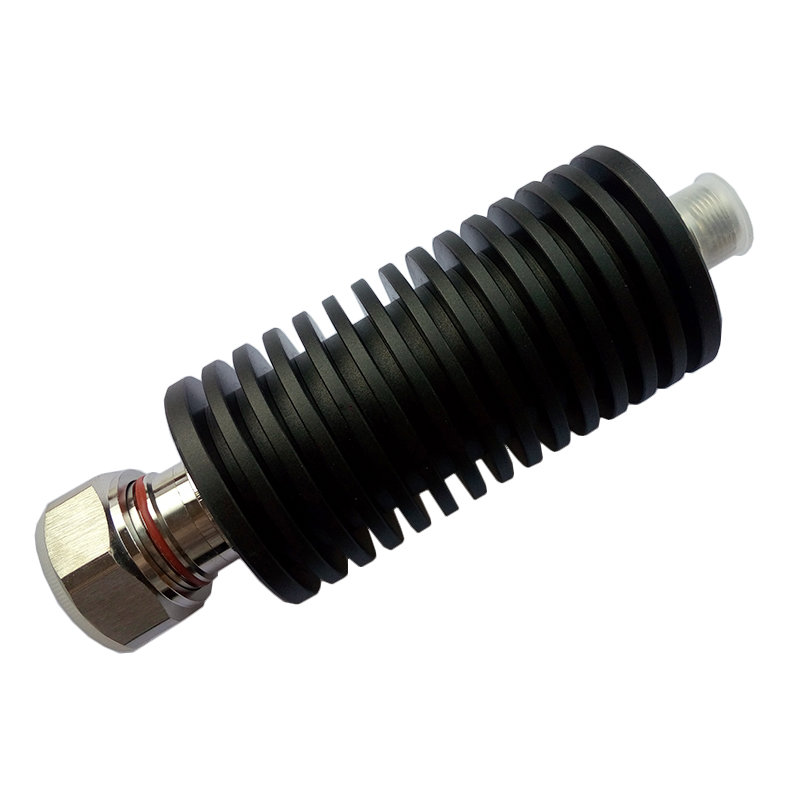

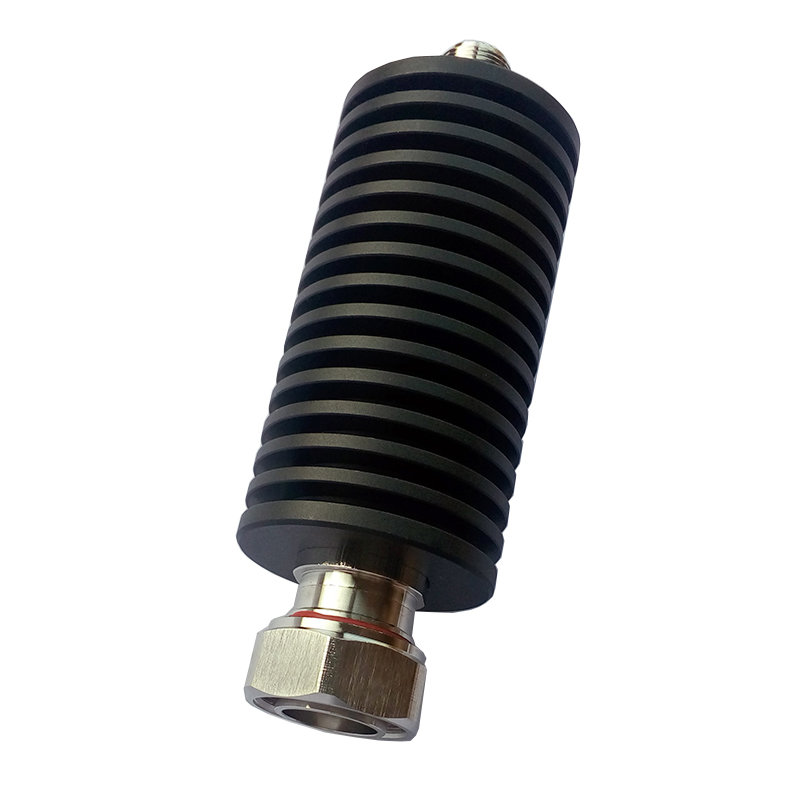

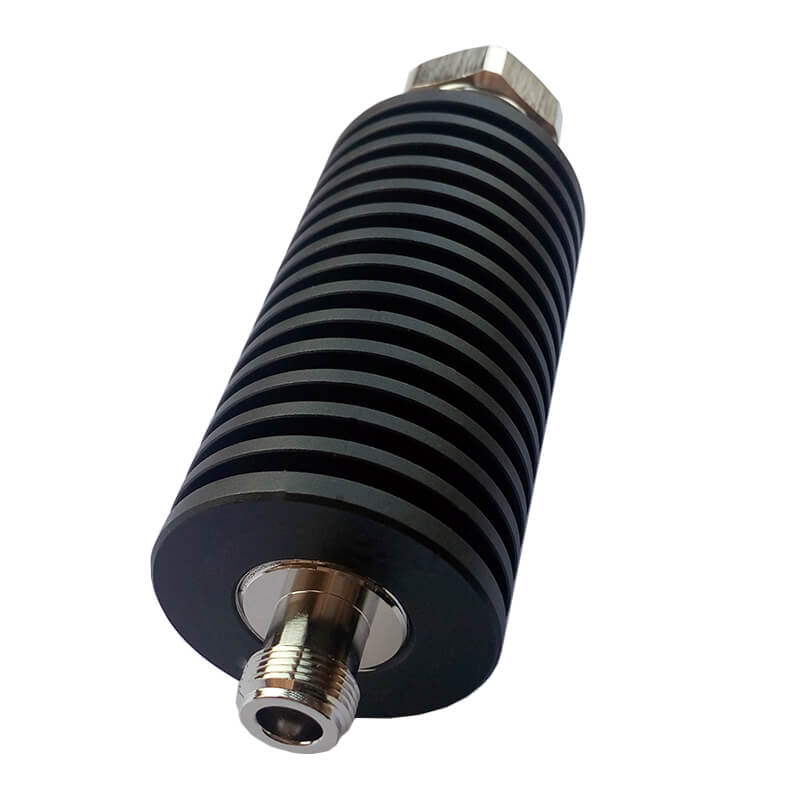

50W DIN Male N Female Attenuator DC-3GHz/4GHz 1-50dB Avaliable

Specification Parameter
Model BC-AT50-03
Power 50W
Connector DIN-J–N-K
Frequency Range DC-3GHz/4GHz
Attenuation 1,2,3,5,6,10,15,20,30,40, 50dB available, and 1-10dB.±0.5dB,15-30dB±1dB, 40-50dB±1.5dB
VSWR (MAX) 1.2:1
Impendance 50Ω
Temperature Range -55°C to +125°C

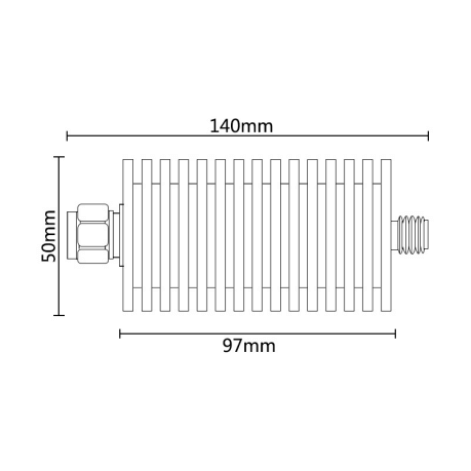

Dimension 145*50mm
Weight 500g
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

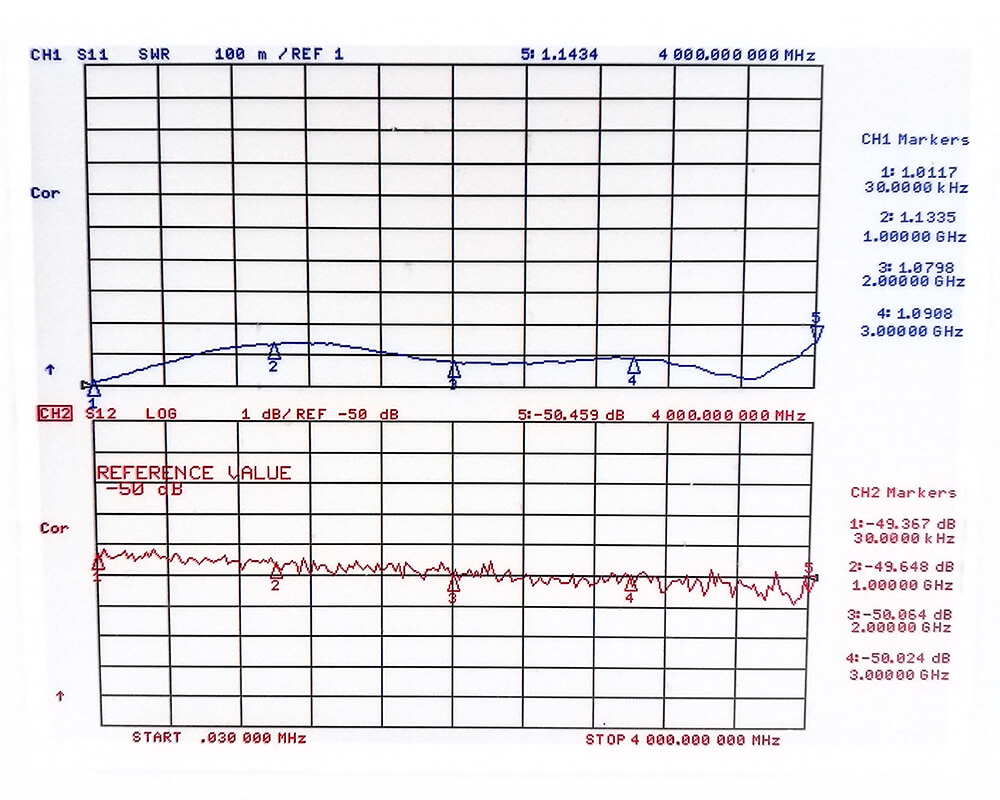

This is the test report of one attenuation. if you want to see more report of other attenuations, please contact us now!
TEST REPORT

Application:

50W DIN type RF Attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
