Project Description

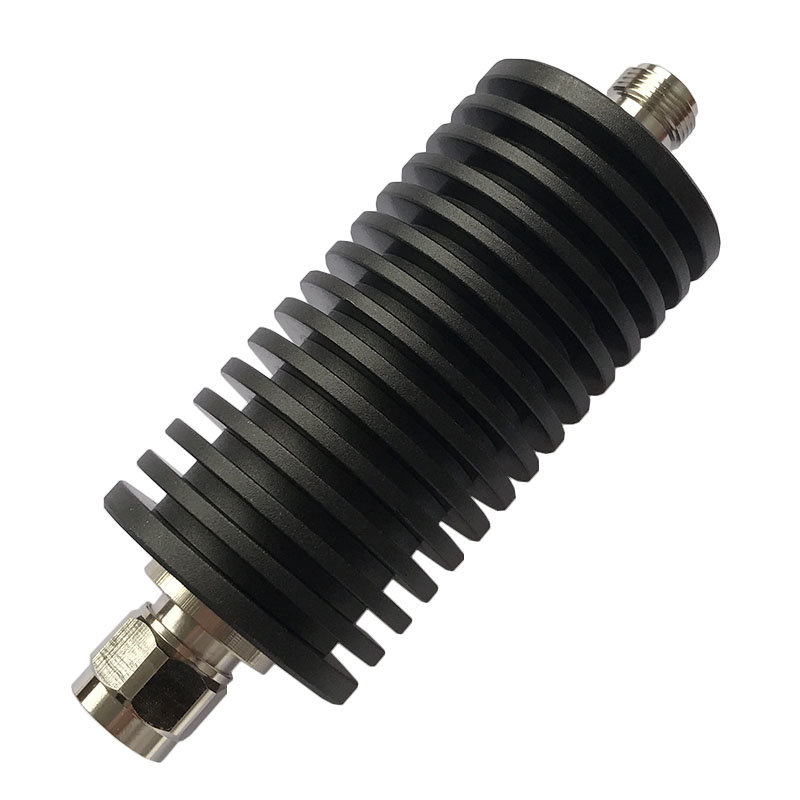

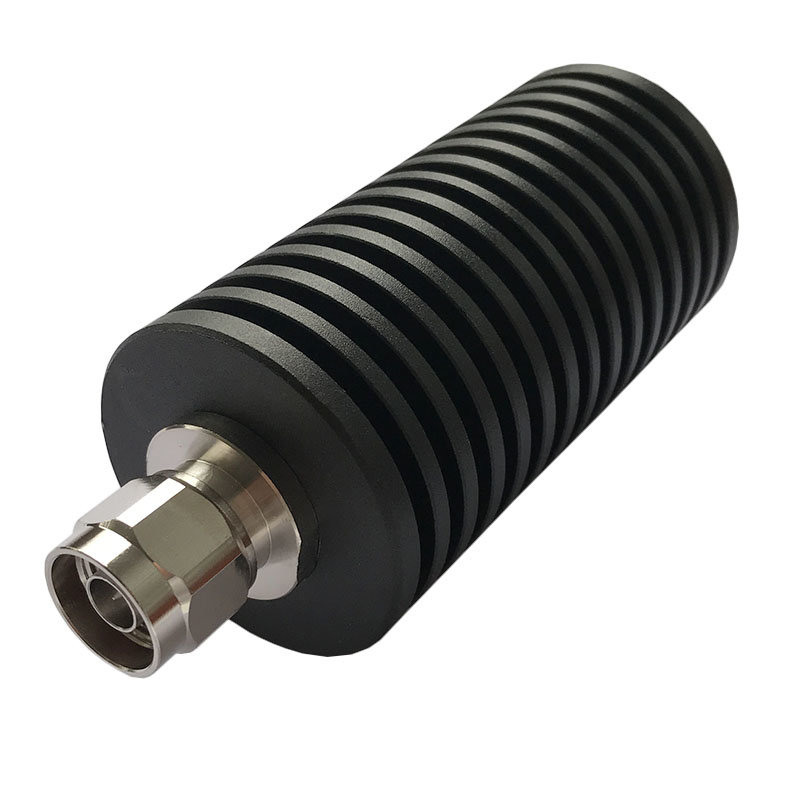

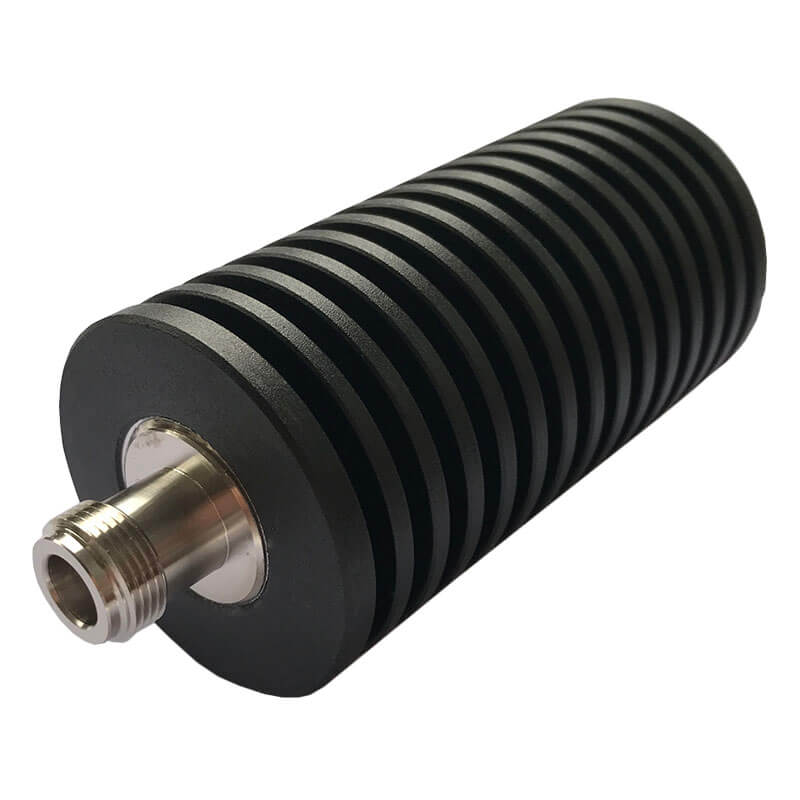

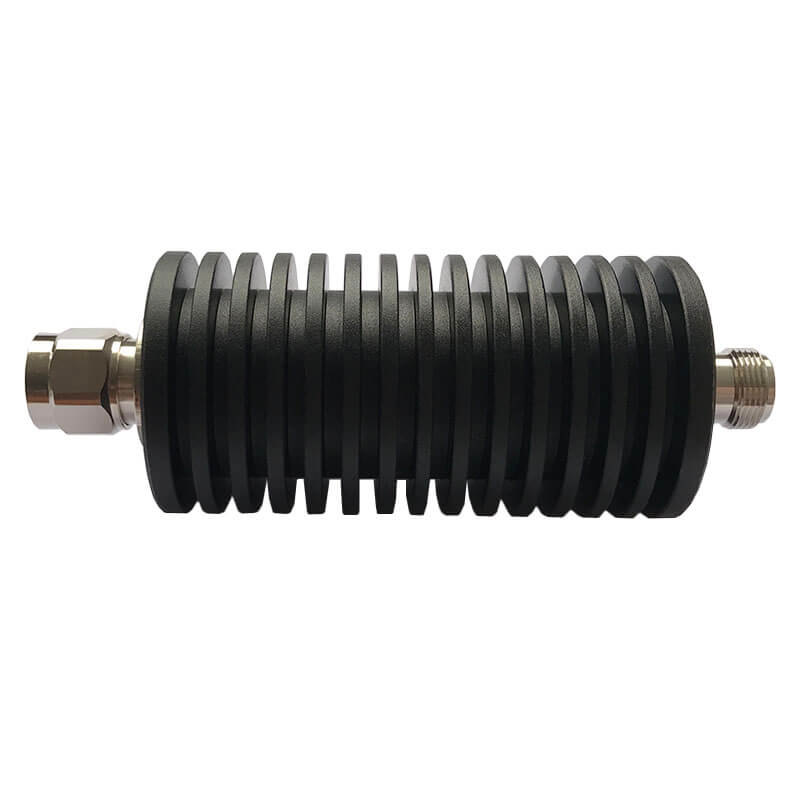

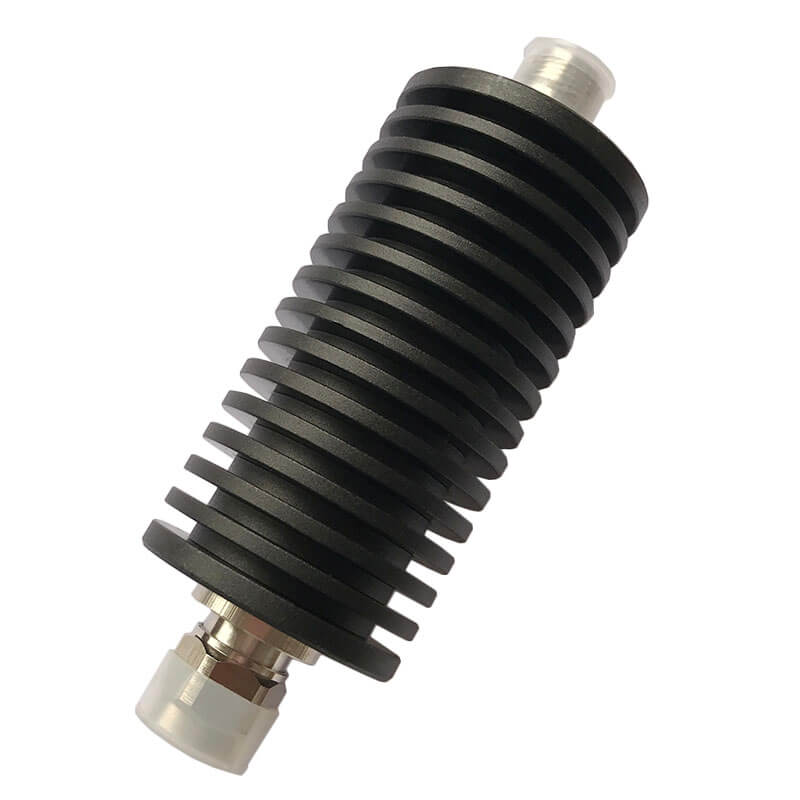

50W N male to female Attenuator Frequency DC-3GHz/4GHz 1-50dB 50ohm

Specification Parameter
Model BC-AT50-02
Power 50W
Connector N-JK
Frequency Range DC-3GHz/4GHz
Attenuation 1,2,3,5,6,10,15,20,30,40, 50dB available, and 1-10dB.±0.5dB,15-30dB±1dB,  40dB±1.5dB, 50dB±2dB
VSWR (MAX) 1.2:1
Impendance 50Ω
Temperature Range -55°C to +125°C

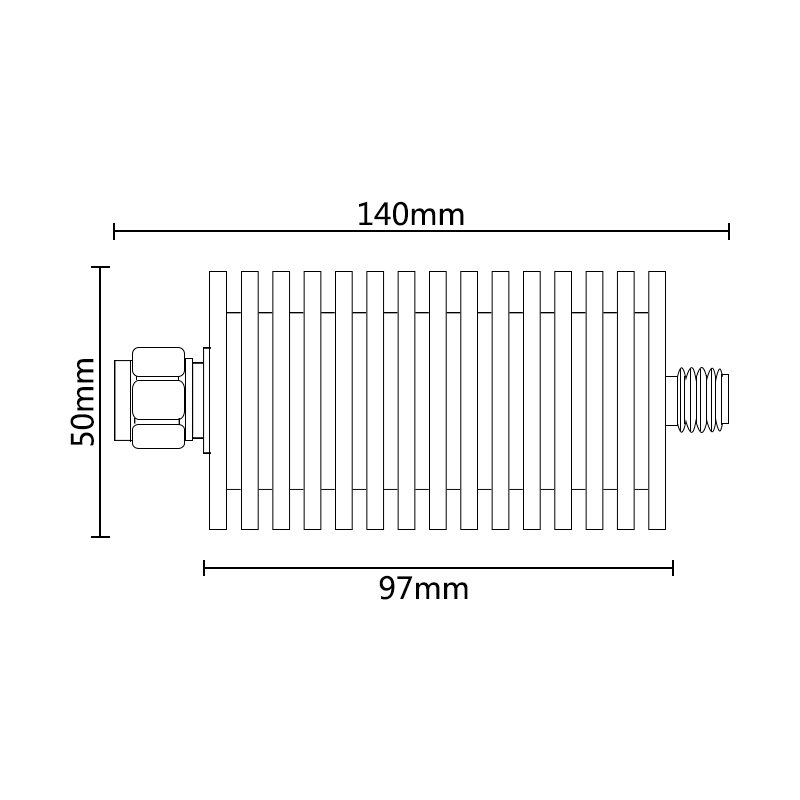

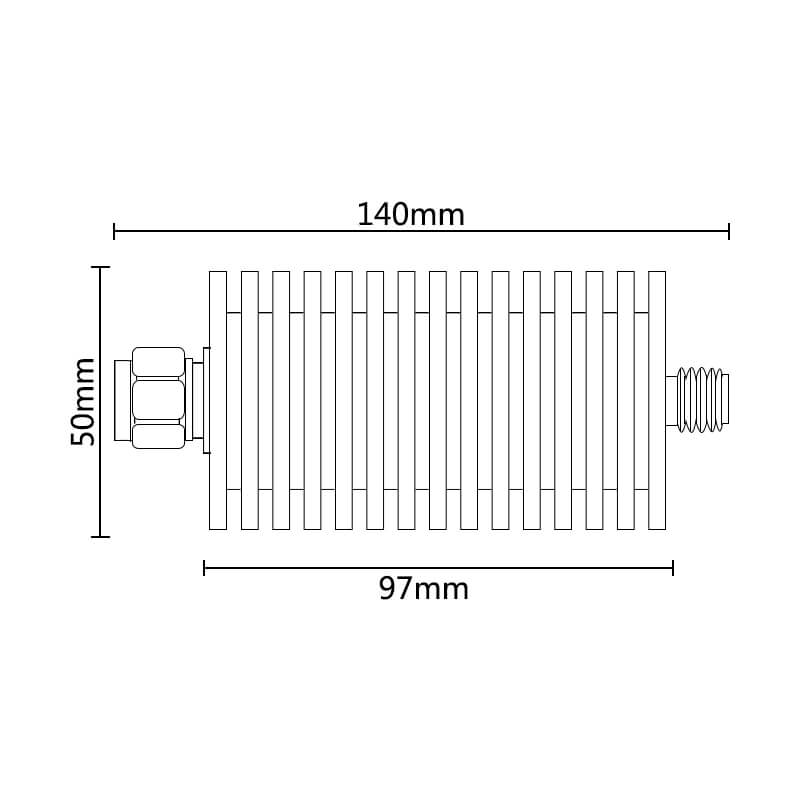

Dimension 140*50mm
Weight 0.5kg
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD

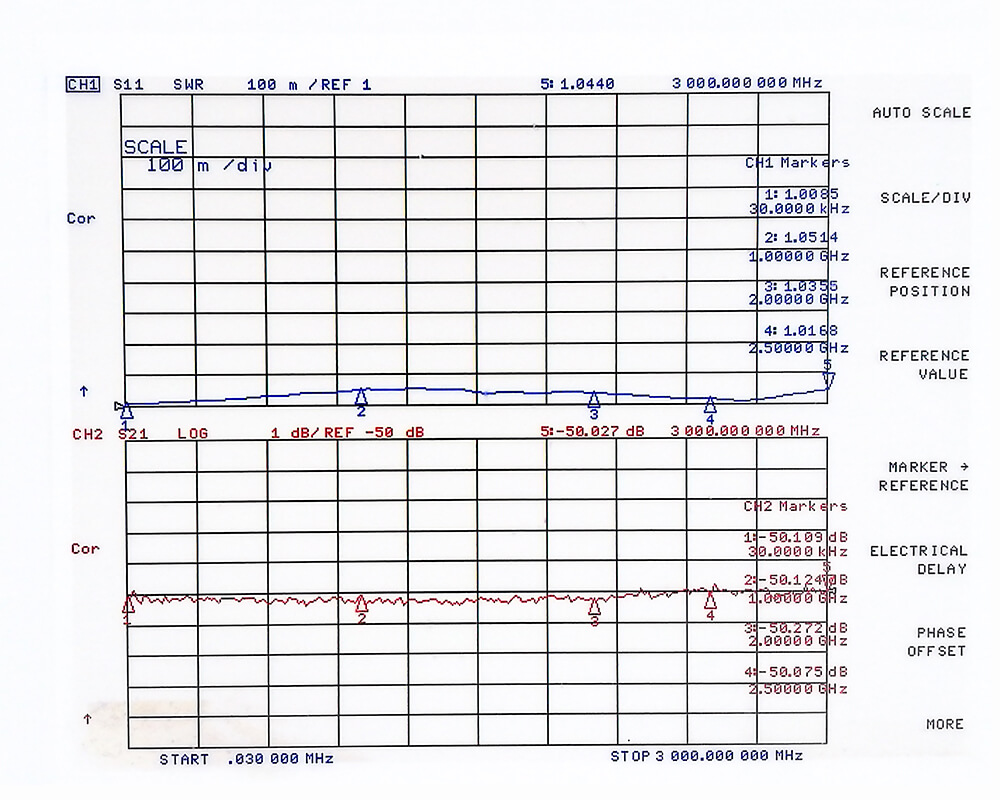

TEST REPORT

TEST REPORT

This is the test report of one attenuation. if you want to see me report of attenuation , please contact us now.
TEST REPORT

Application:

50W N-JK coaxial fixed attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
