Project Description

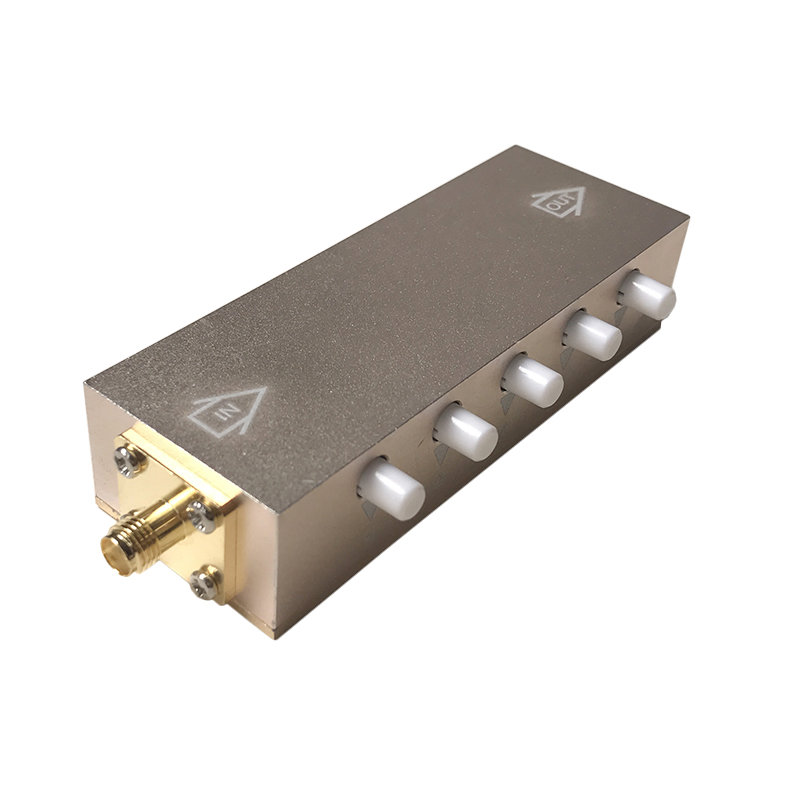

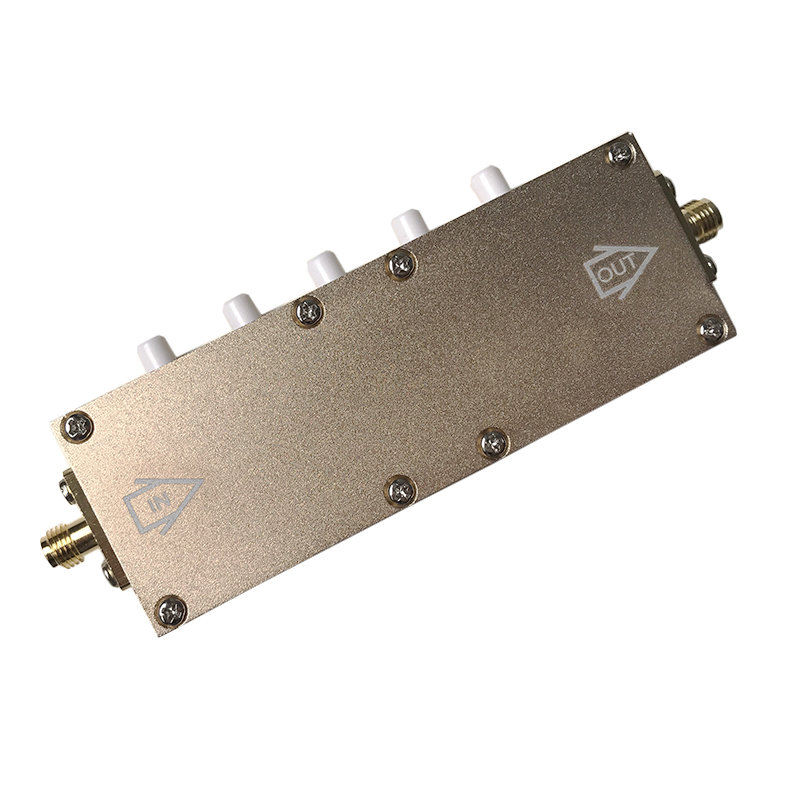

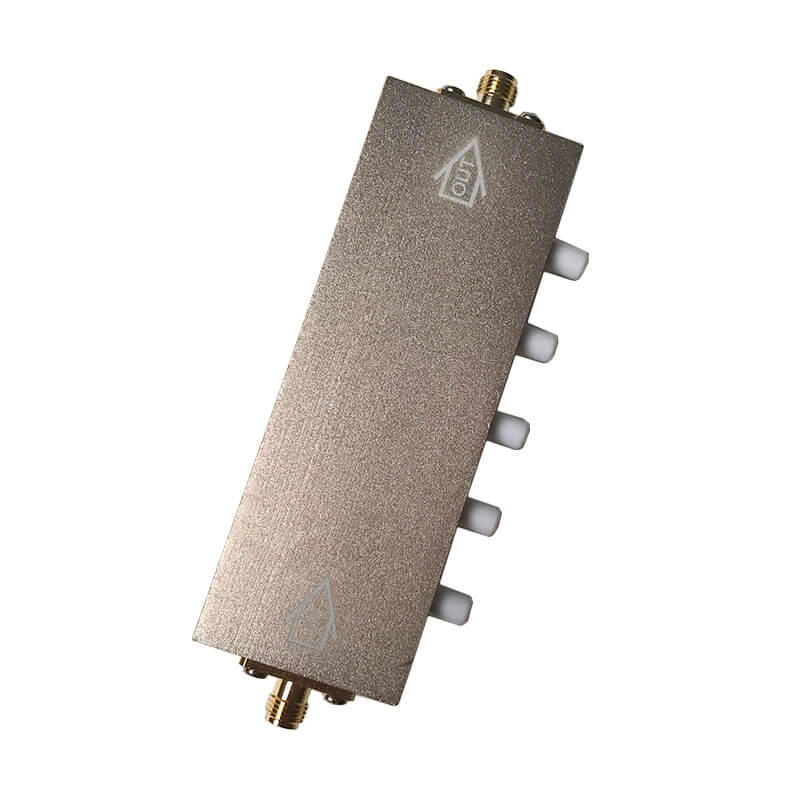

5W 30db step attenuator/ step variable attenuator SMA K-K 0-30db 50ohm

Specification Parameter
Model BC-SA05-02
Power 5W
Connector SMA-KK
Frequency Range DC-2.5GHz/3GHz

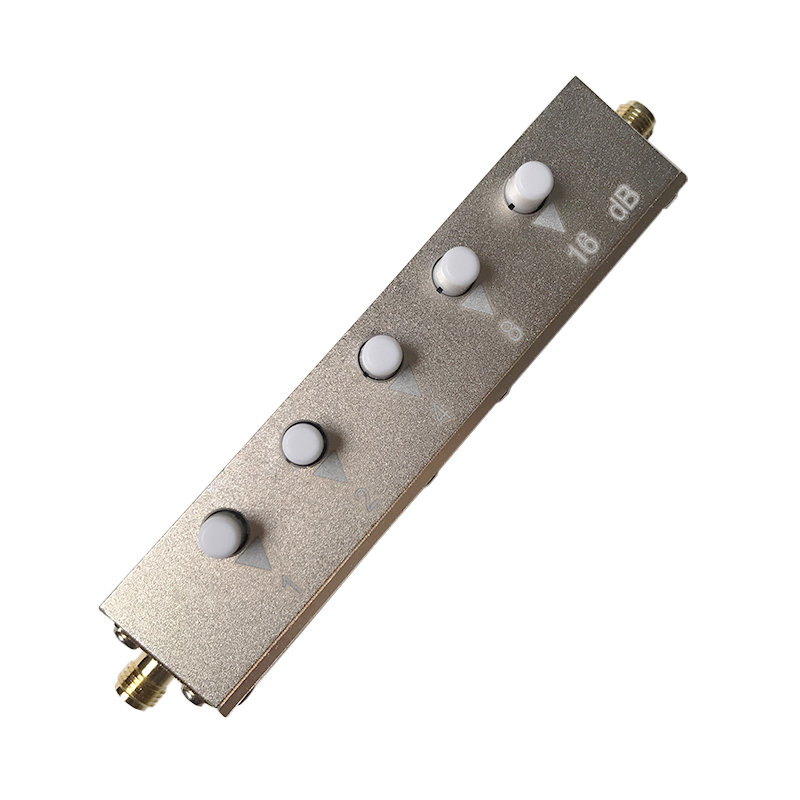

Attenuation 1.2.4.8.16dB 1dB step, 0-10 dB±0.8dB, 10-30 dB±1.3dB
VSWR (MAX) 1.2:1
Impendance 50Ω
Temperature Range -55°C to +125°C
Dimension 124*30*20mm
Weight 135g
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

This is the test report of one attenuation. if you want to see me report of attenuation , please contact us now.
TEST REPORT

Application:

5W SMA -FF step variable attenuator 30db are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
