Project Description

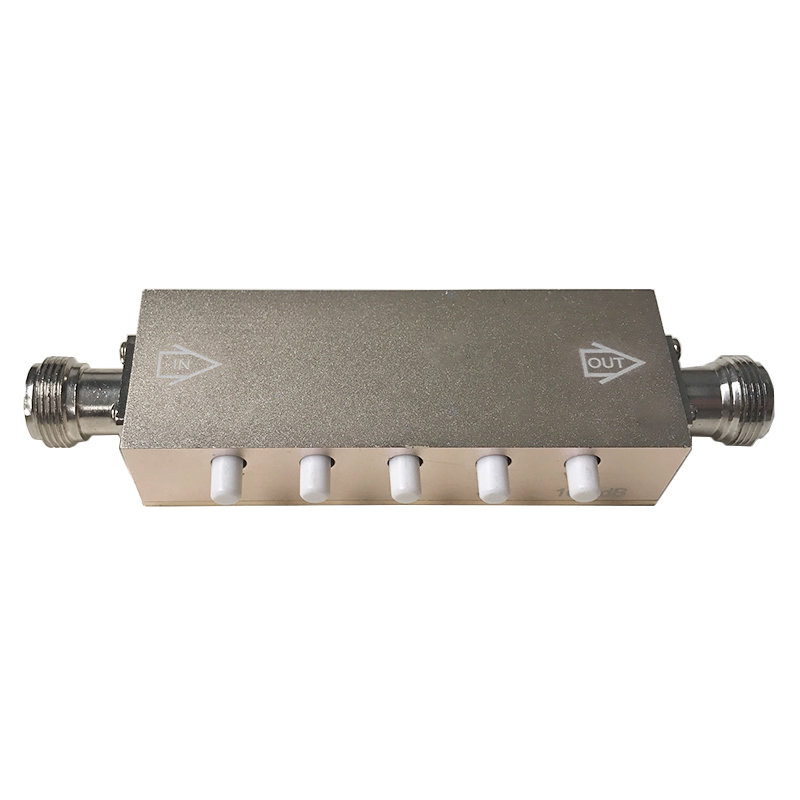

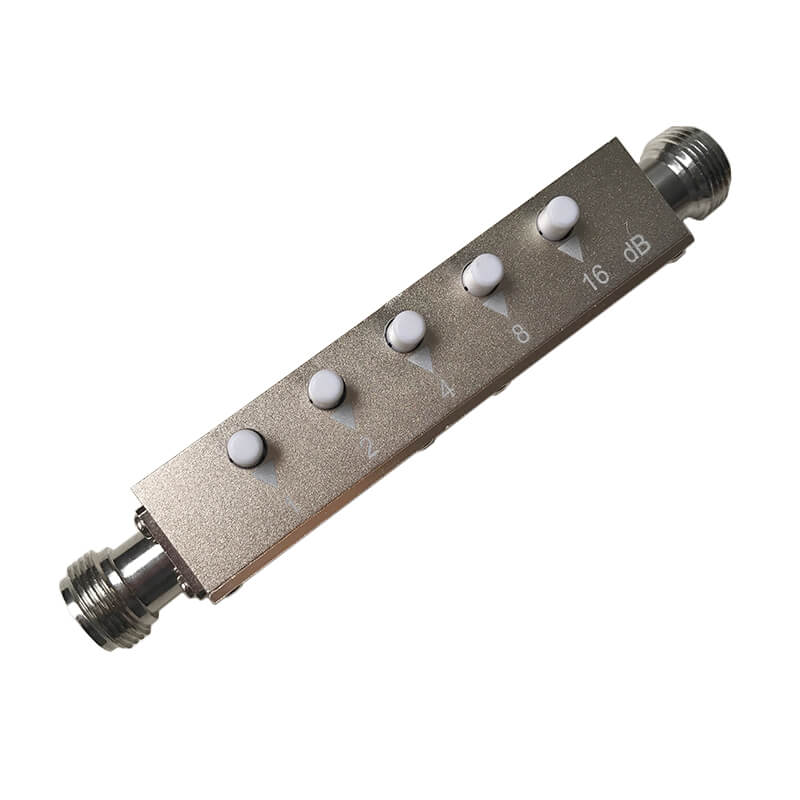

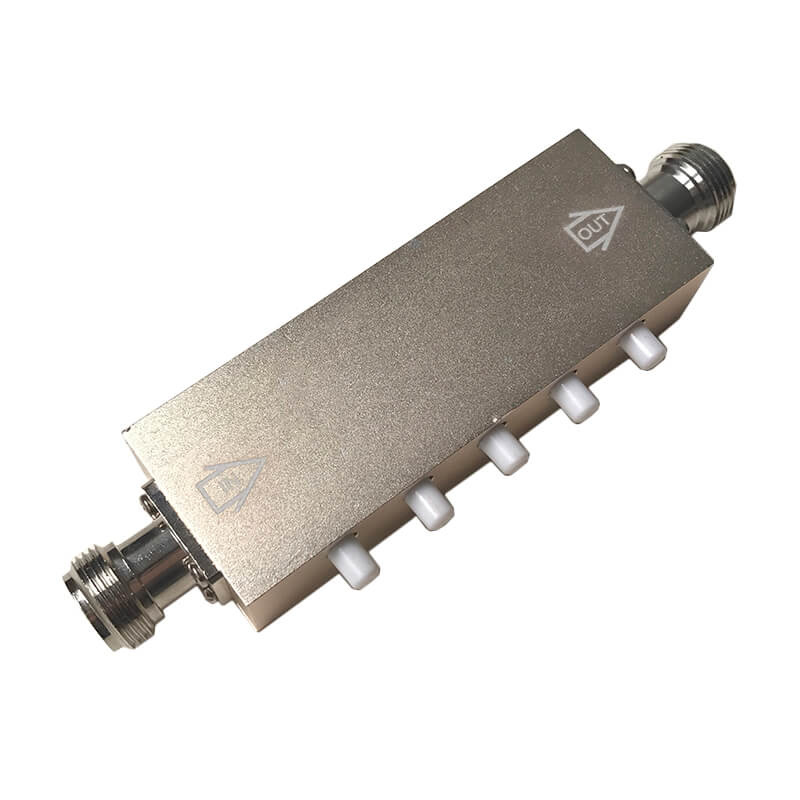

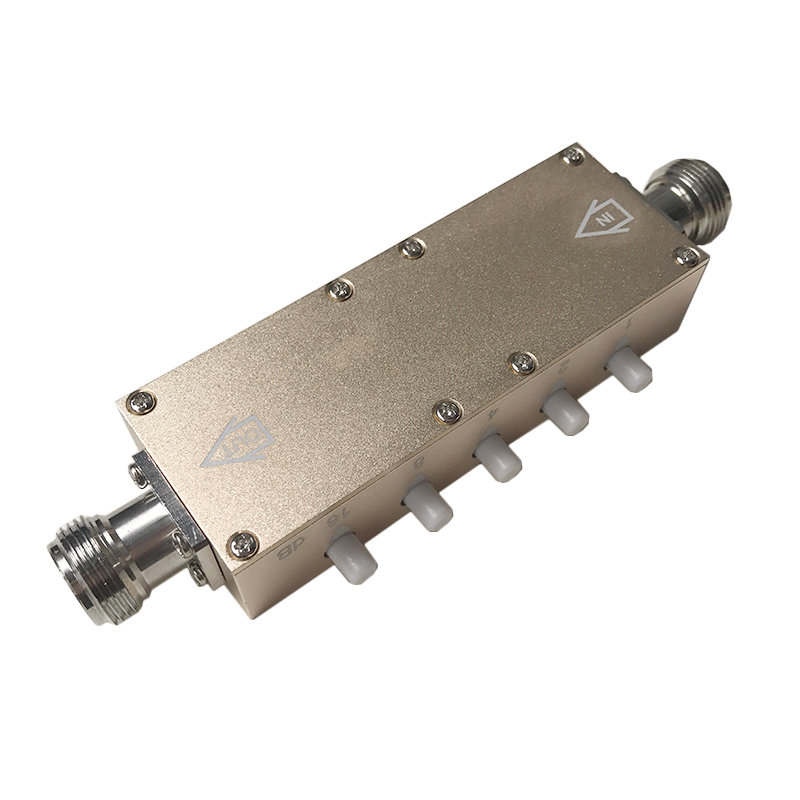

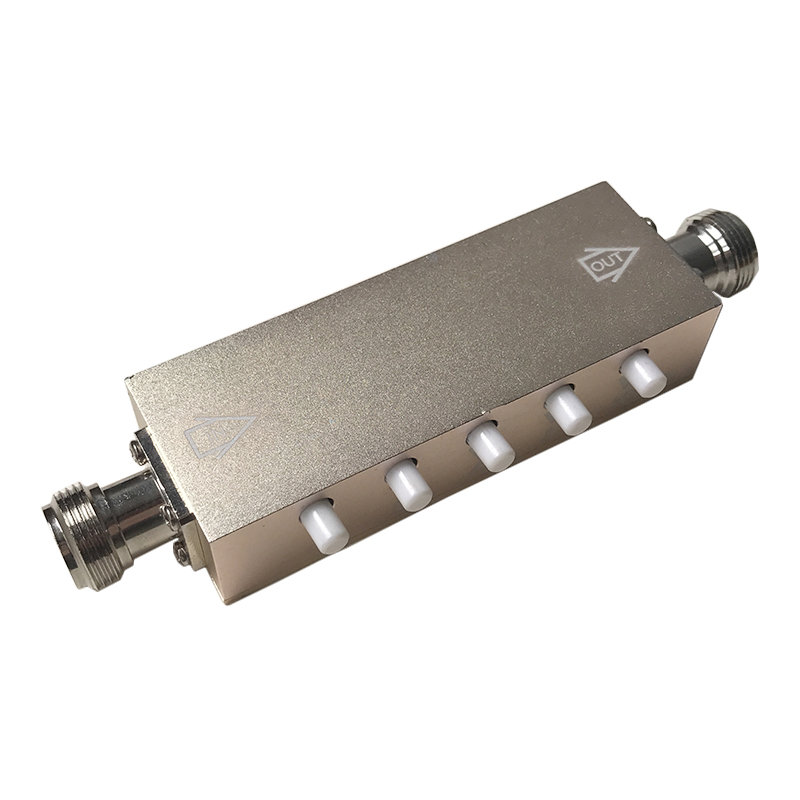

5W 30db step attenuator/ step variable attenuator N K-K 0-30db 50ohm
| Specification | Parameter |
|---|---|
| Model | BC-SA05-01 |
| Power | 5W |
| Connector | N-KK |
| Frequency Range | DC-2.5GHz/3GHz |
| Attenuation | 1.2.4.8.16dB 1dB step, 0-10 dB±0.8dB, 10-30 dB±1.3dB |
| VSWR (MAX) | 1.2:1 |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |
| Dimension | 124*30*20mm |
| Weight | 135g |
TEST REPORT
TEST REPORT
This is the test report of one attenuation. if you want to see me report of attenuation , please contact us now.
TEST REPORT
Application:
5W N step variable attenuator 30db are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
