Project Description

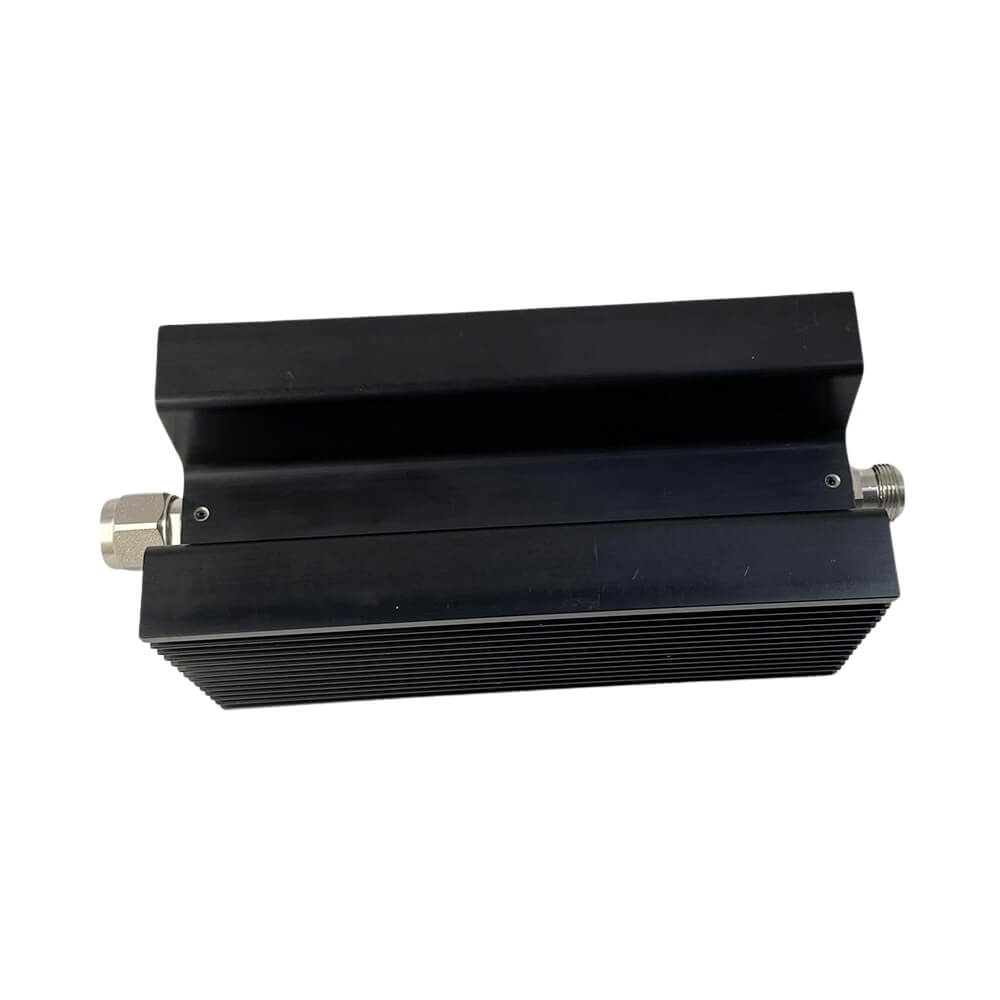

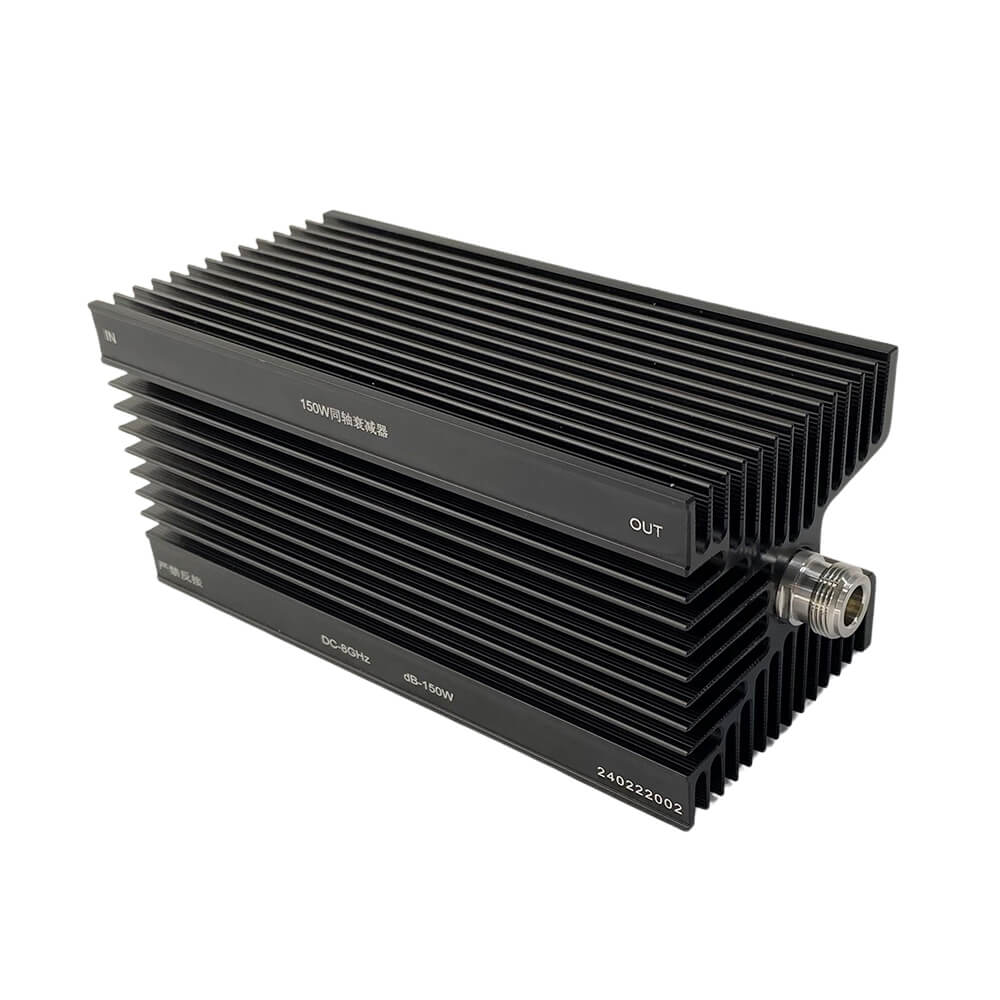

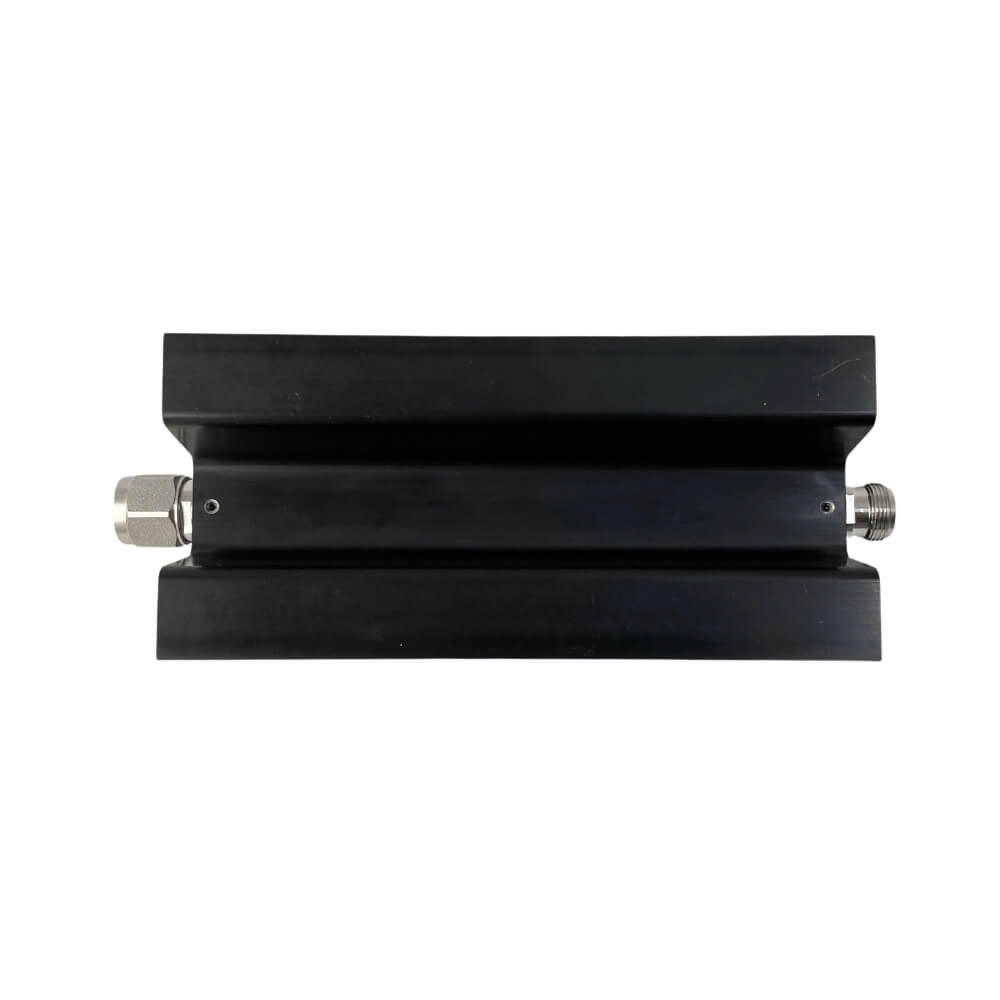

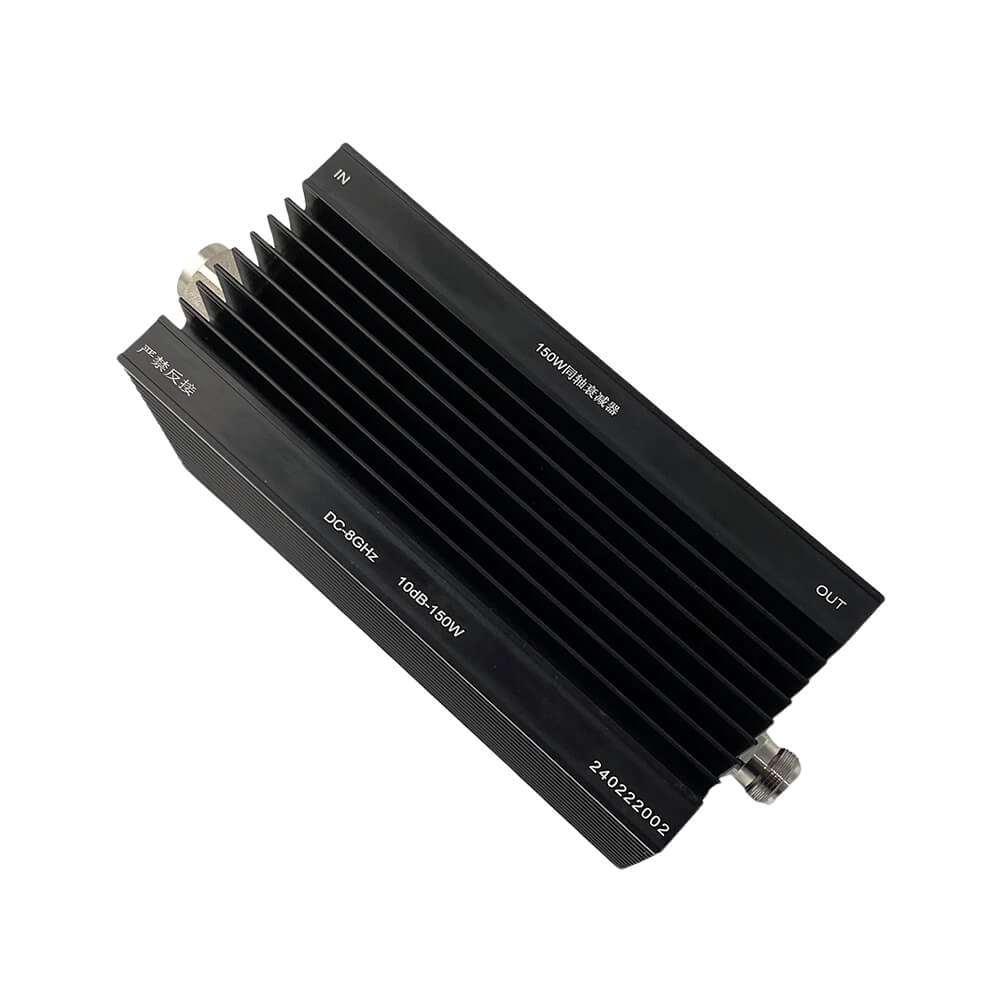

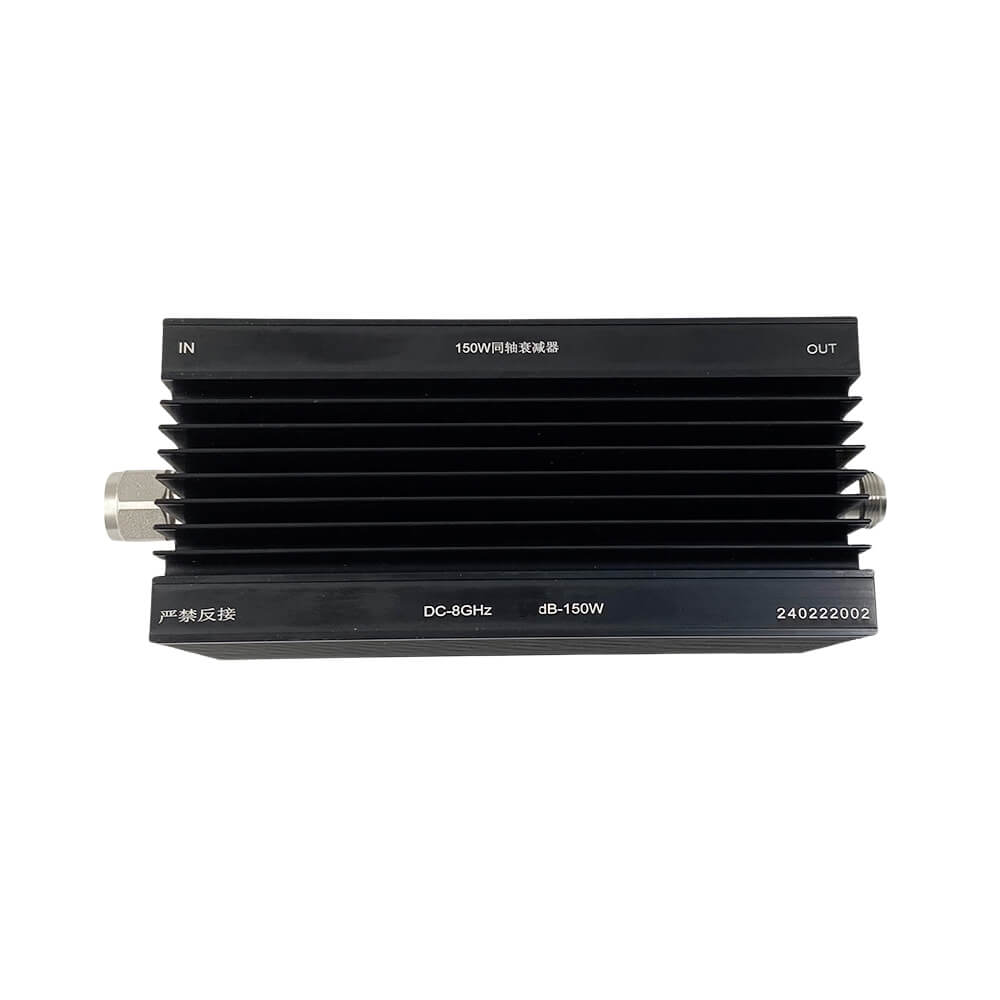

150W N-JK RF Attenuator DC-8GHz 10dB

Specification Parameter
Model BC-AT150-8G
Power 150W
Connector N-JK
Frequency Range DC-8GHz
Attenuation 10dB
VSWR (MAX) 1.3:1
Impendance 50Ω
Temperature Range -55°C to +125°C

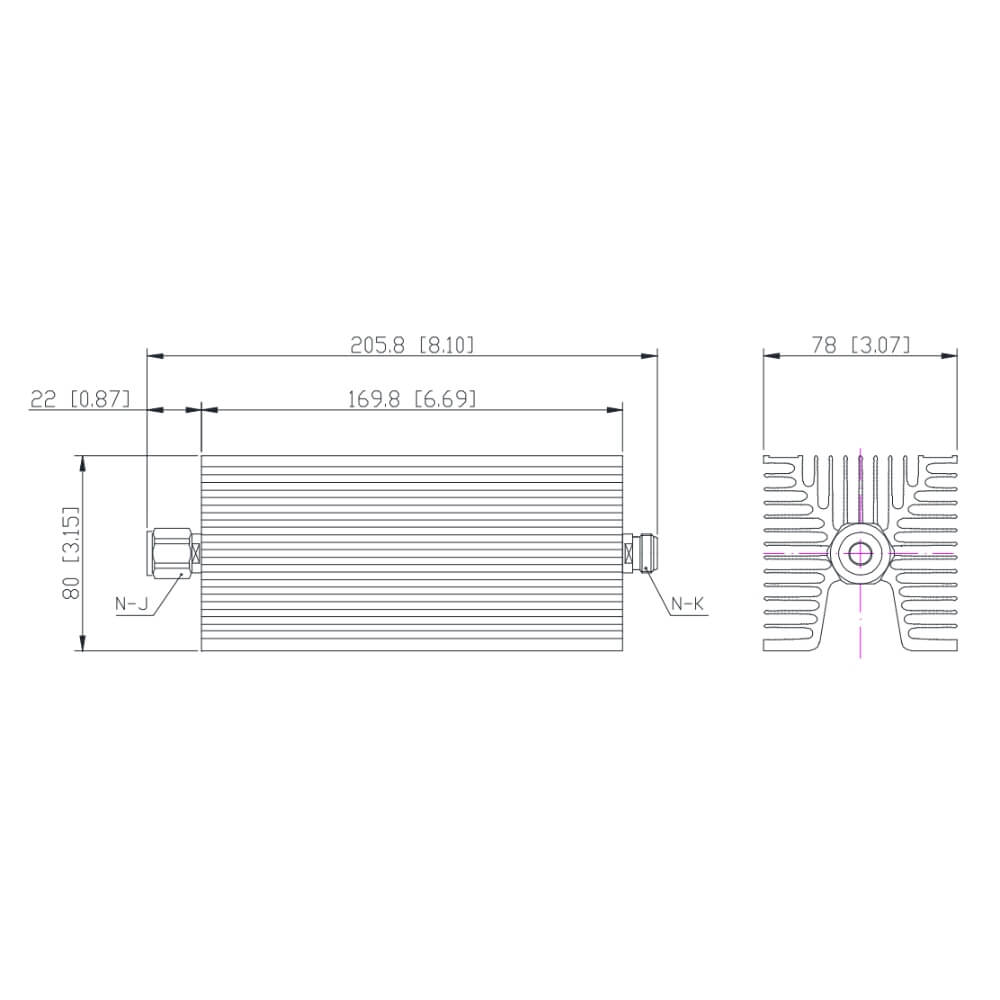

Dimension 78×80×205.8mm
Weight 1.27kg
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

This is the test report of one attenuation. if you want to see more report of other attenuations, please contact us now!
TEST REPORT

Application:

150W coaxial fixed attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
