Project Description

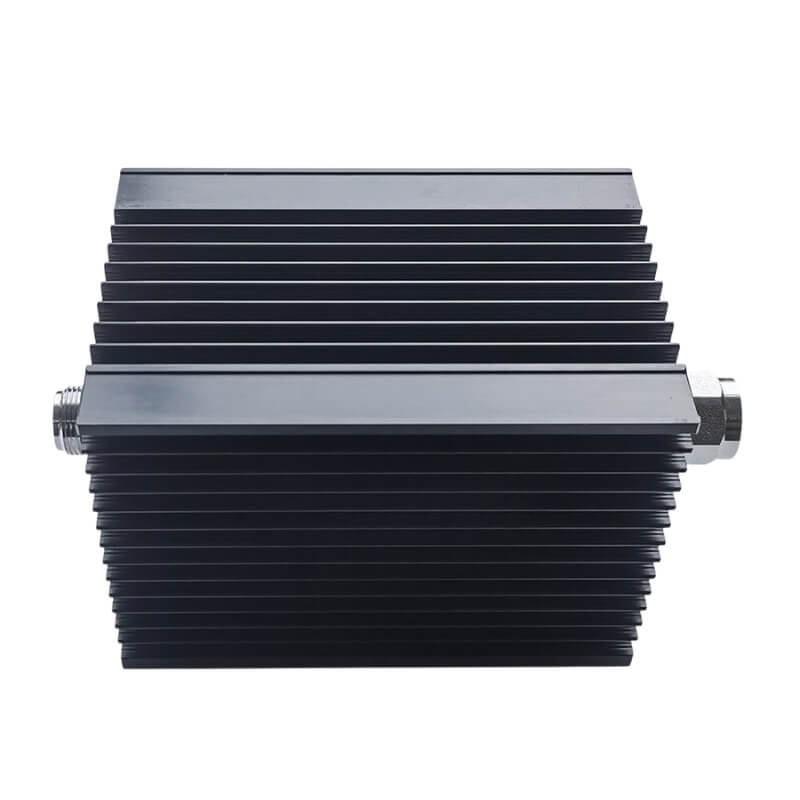

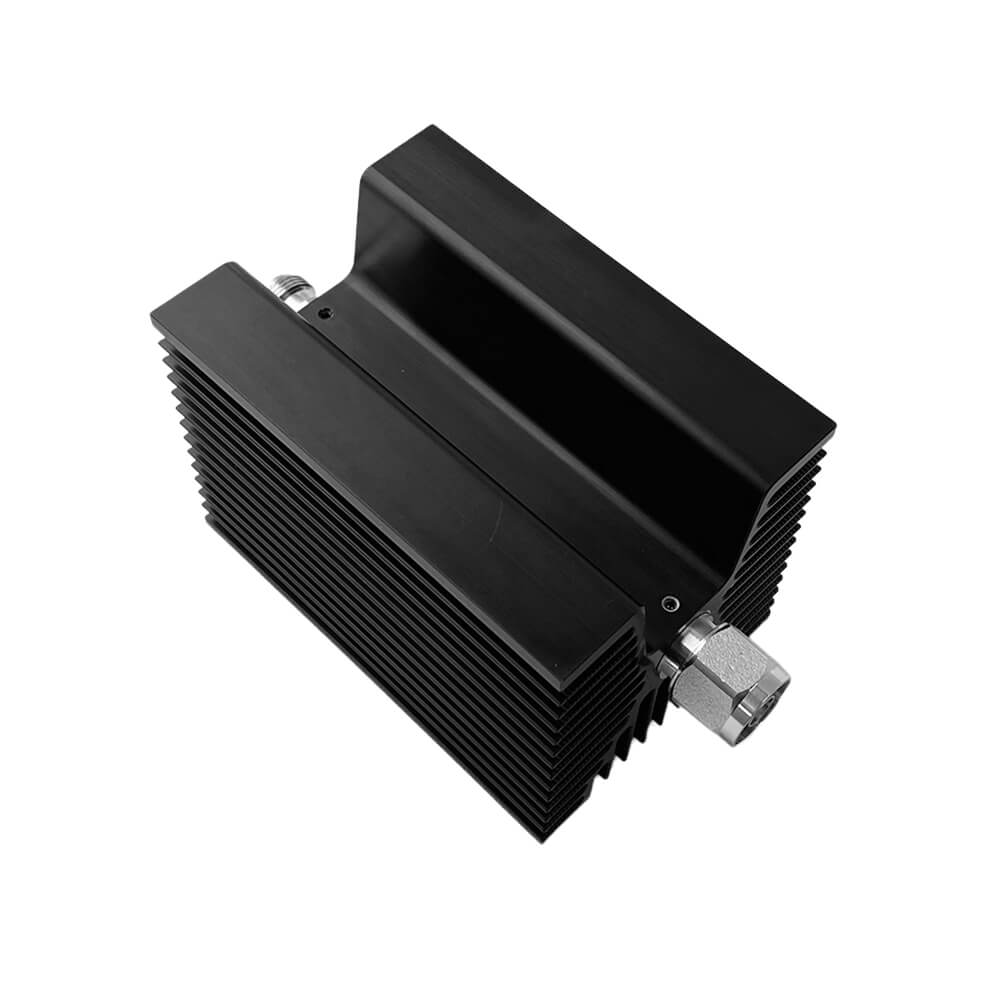

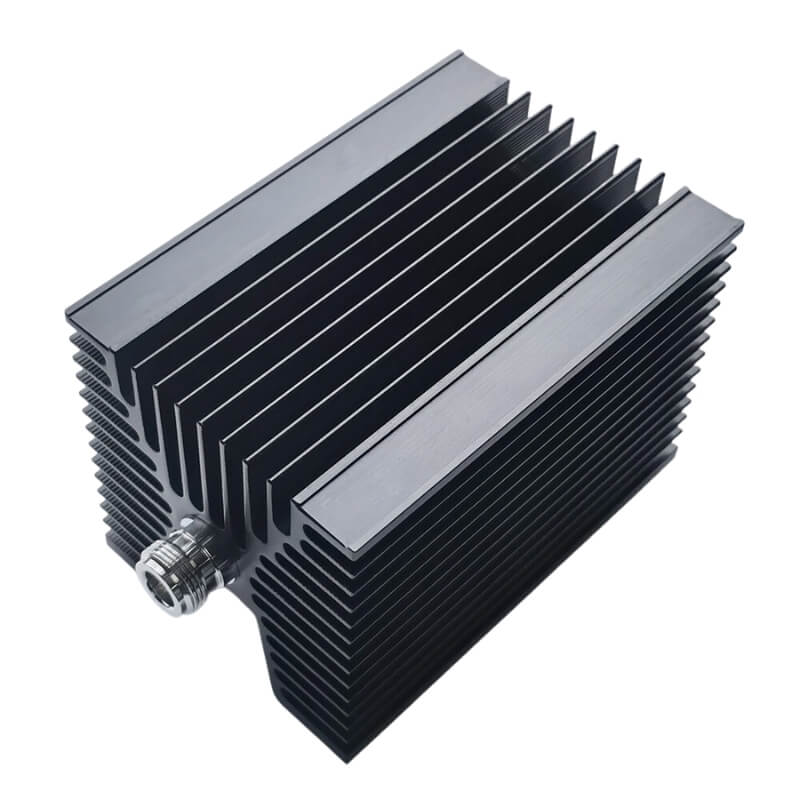

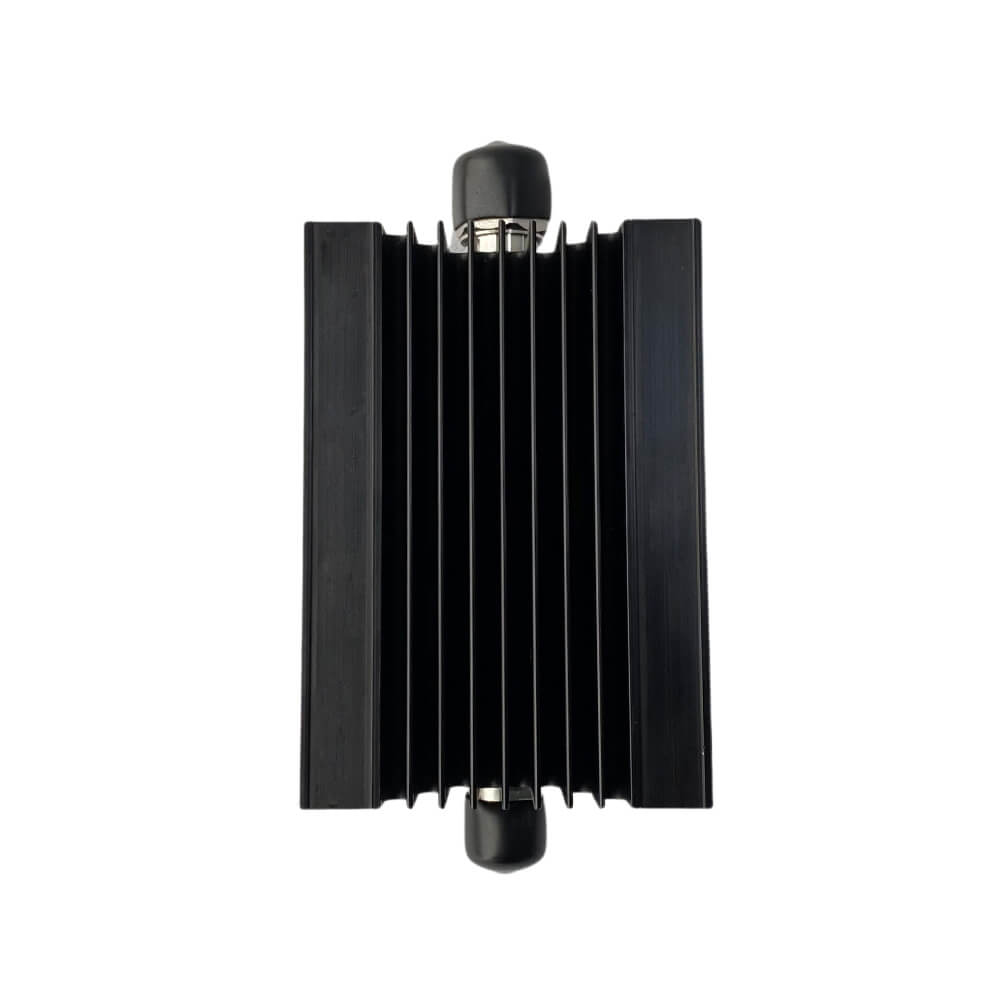

DC-8GHz 100W RF Attenuator 1-50dB 50Ohm

Specification Parameter
Model BC-AT100-8G
Power 100W
Connector N-K(F)/N-K(F)
Frequency Range DC-8GHz
Attenuation 1-40dB available, and 1-10dB.±0.8dB,11-30dB±1dB, 40dB±1.2dB
VSWR (MAX) 1.25:1
Impendance 50Ω
Temperature Range -55°C to +125°C

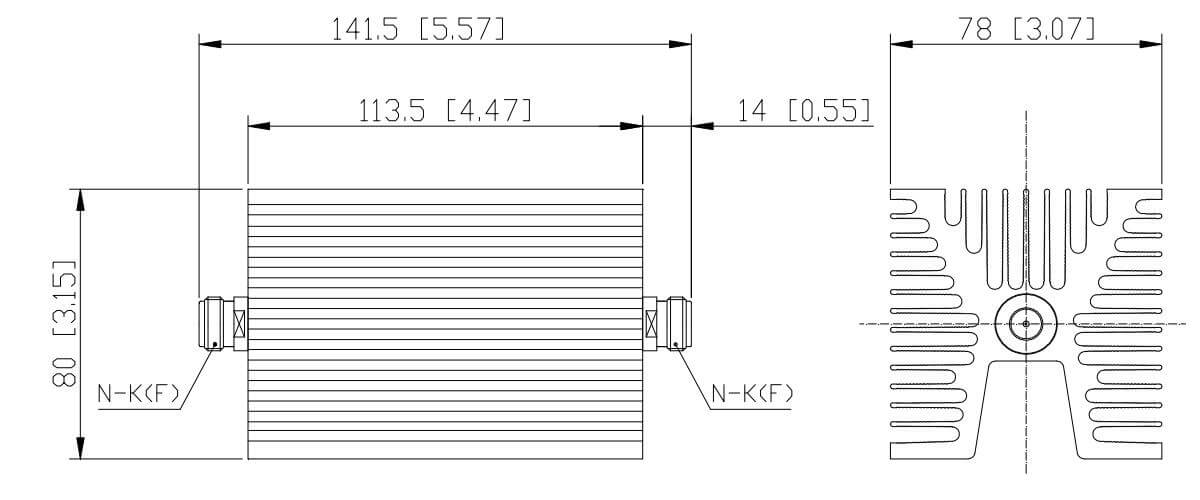

Dimension 78*80*149.5mm
Weight 880g
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD

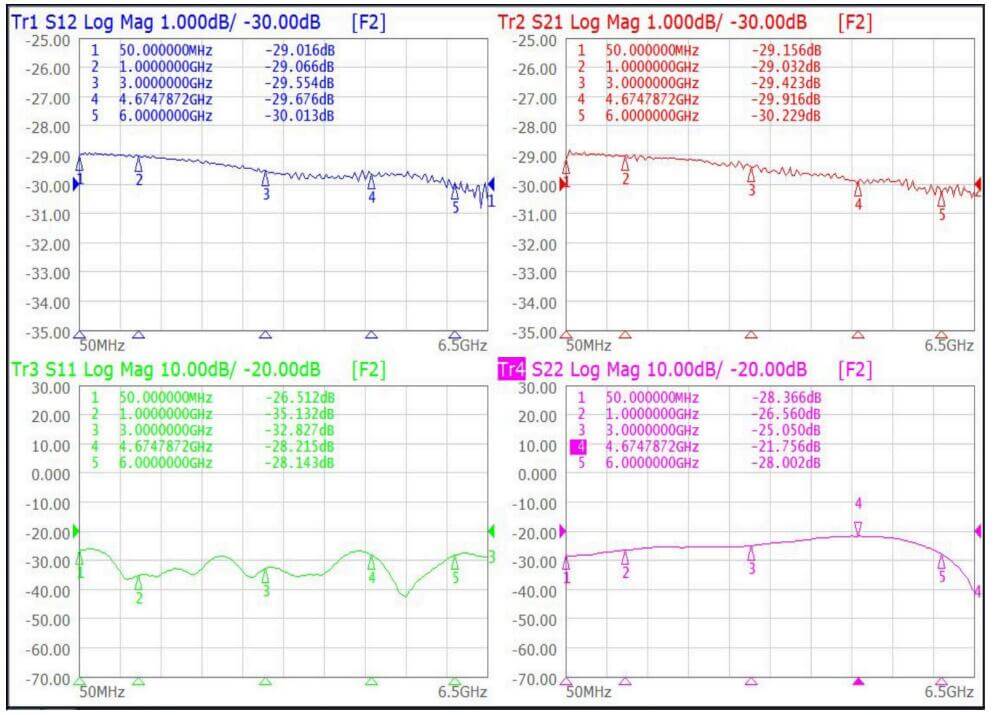

TEST REPORT

TEST REPORT

This is the test report of one attenuation. if you want to see me report of attenuation , please contact us now.
TEST REPORT

Application:

100W coaxial fixed attenuator DC-8GHz is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
