Project Description

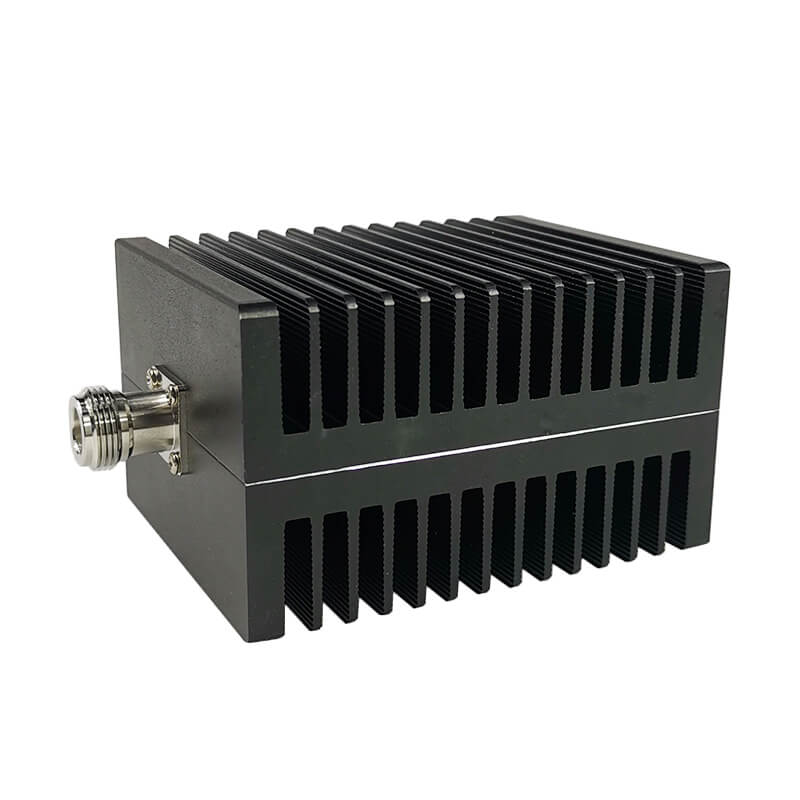

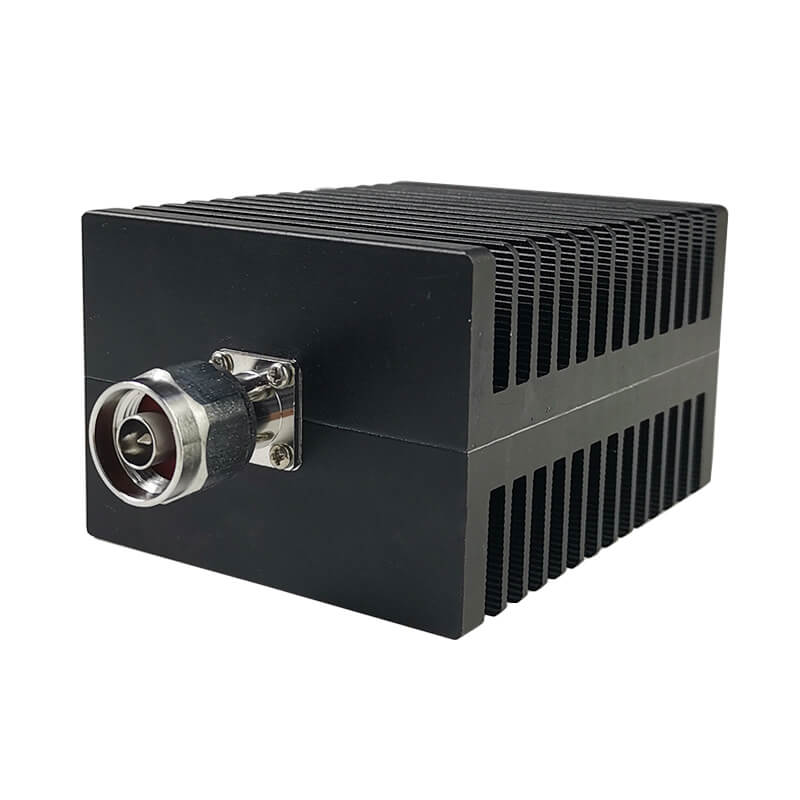

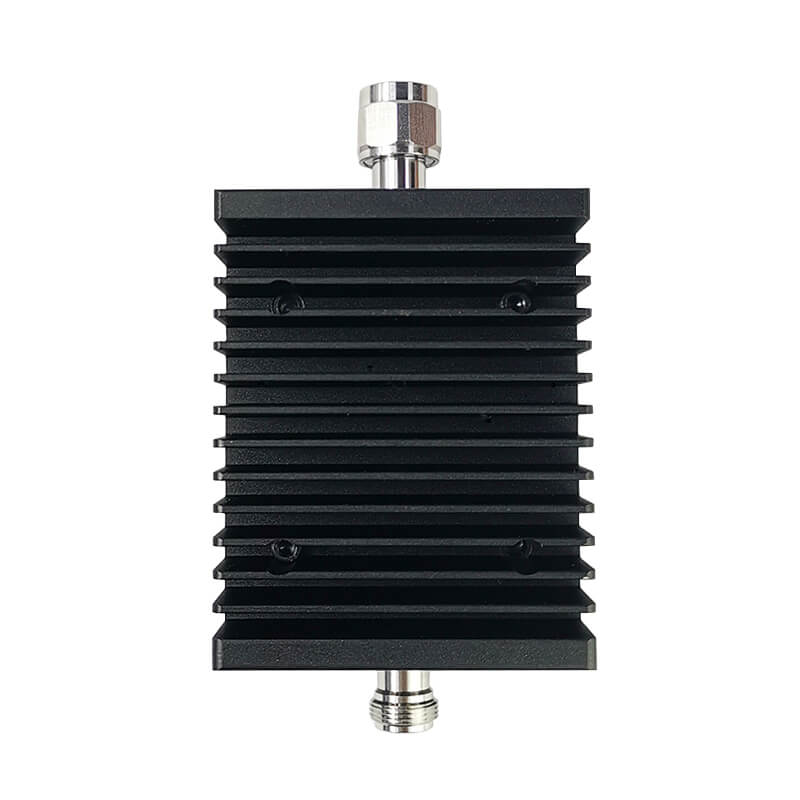

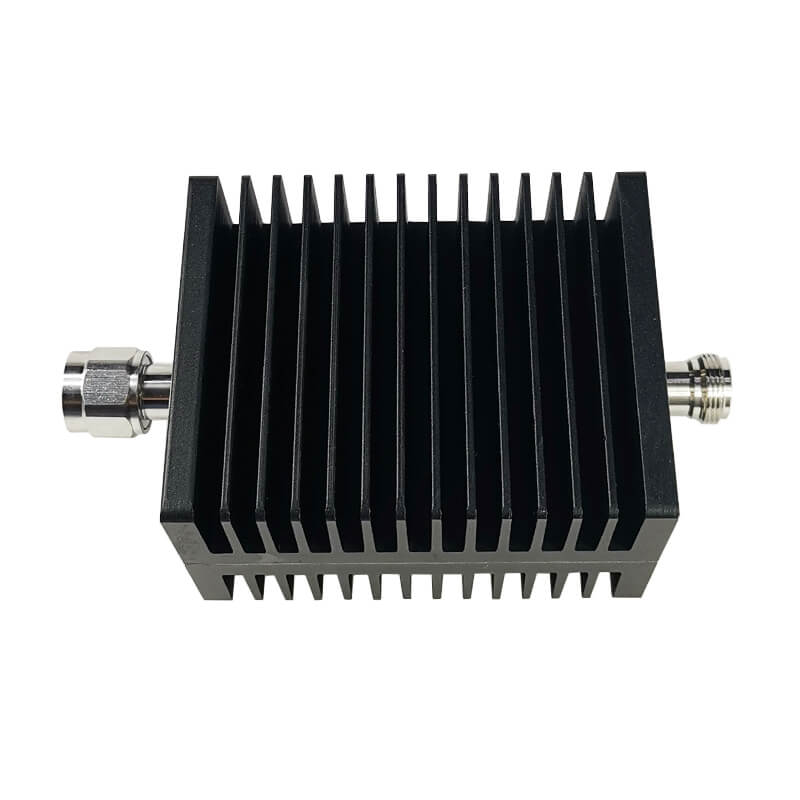

High Power RF Attenuator 100W N-JK Type 1-50dB
| Specification | Parameter |
|---|---|
| Model | BC-AT100-03 |
| Power | 100W |
| Connector | N-JK |
| Frequency Range | DC-3GHz/4GHz |
| Attenuation | 1,3,5,6,10,15,20,30,40, 50dB Available, and 1-10dB.±0.5dB,15-30dB±1dB, 40-50dB±1.5dB |
| VSWR (MAX) | 1.2:1 |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |

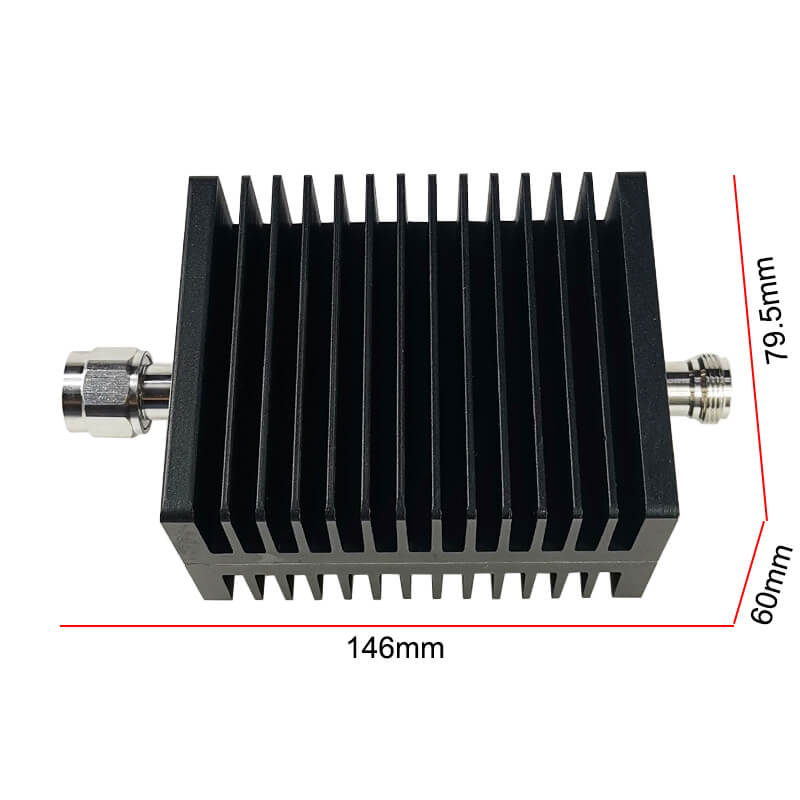

| Dimension | 146*79.5*60mm |
| Weight | 1.5Kg |

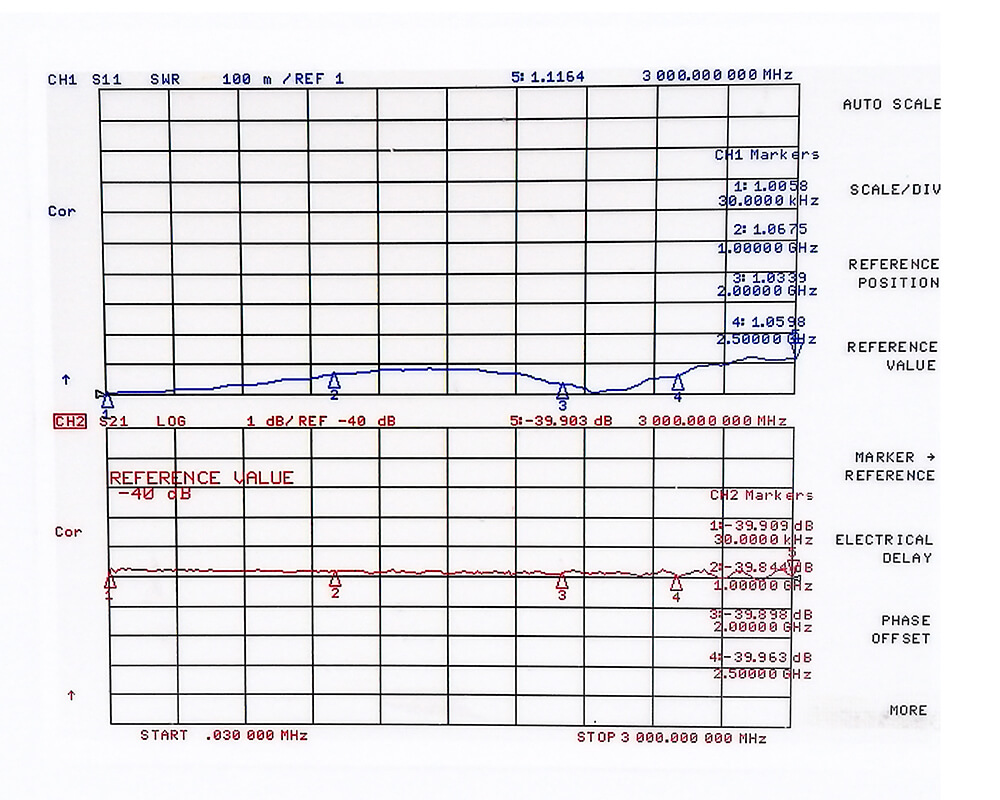

TEST REPORT
TEST REPORT
This is the test report of one attenuation. if you want to see more report of other attenuations, please contact us now!
TEST REPORT
Application:
N-JK 100W High Power Attenuator is widely used in below fileds:
Mobile Communication Network Optimization and In-door distribution system.
Cluster communication, satellite communication, shortwave communication and hopping radio.
Radar, electronic navigation and electronic confrontation.
Aerospace equipment systems
