Project Description
Specification | Parameter |
---|---|
Model | BC-TE5000-01 |
Power | 5000W |
Connector | N-J |
Frequency Range | DC-1GHz |
VSWR (MAX) | 1.4:1 |
Impendance | 50Ω |
Temperature Range | -40°C~+45°C |

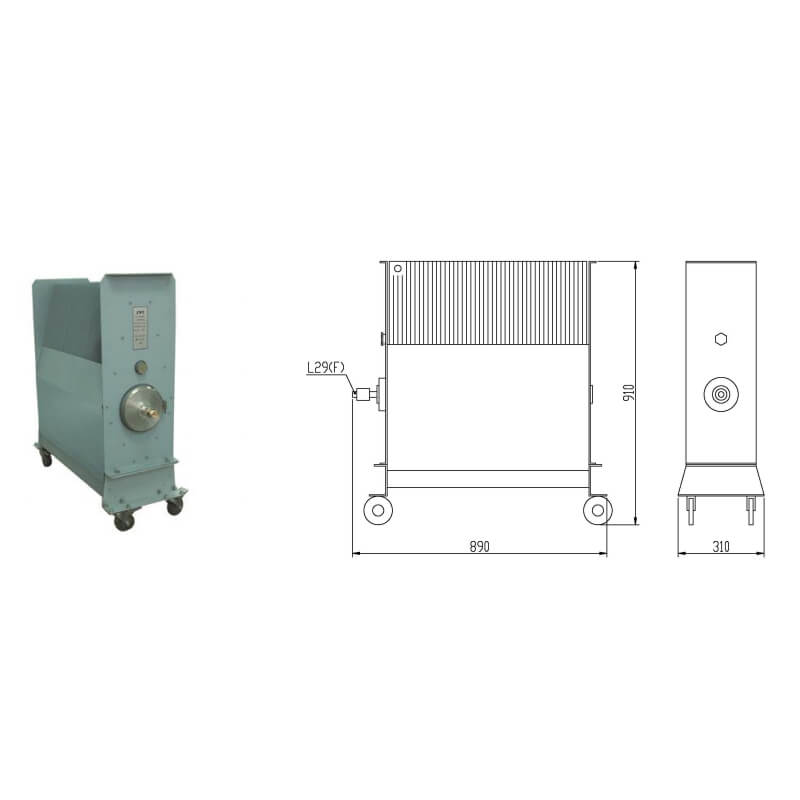

Dimension | 905×340×930mm |
Weight | 110Kg |
TEST REPORT
TEST REPORT
This is the test report for 3GHz, If you want to see the report of other frequency range, please contact us for it now.
TEST REPORTApplication:
5000W RF Dummy Load (N, DC-1GHz) Coaxial fixed terminations absorb RF& microwave energy and are commonly used as dummy loads of antenna and
transmitter. They are also used as match ports in many multiport microwave device such as circulator and directional coupler to make these ports which are not involved in the measurement be terminated in their characteristic impedance in order to ensure an accurate measurement.
high power coaxial fixed termination’s average power from 1KW-10KW, frequency range from DC-4GHz and the features include wide frequency band, low VSWR, excellent capacity in anti-pulse and anti-burnout etc.
