Project Description

150W N, 7/16 Attenuator DC-6GHz 20-50dB avaliable

Specification Parameter
Model BC-PDTS150-6
Power 150W
Connector N,7/16
Frequency Range DC-6GHz
Impendance 50Ω
Temperature Range -55°C to +125°C

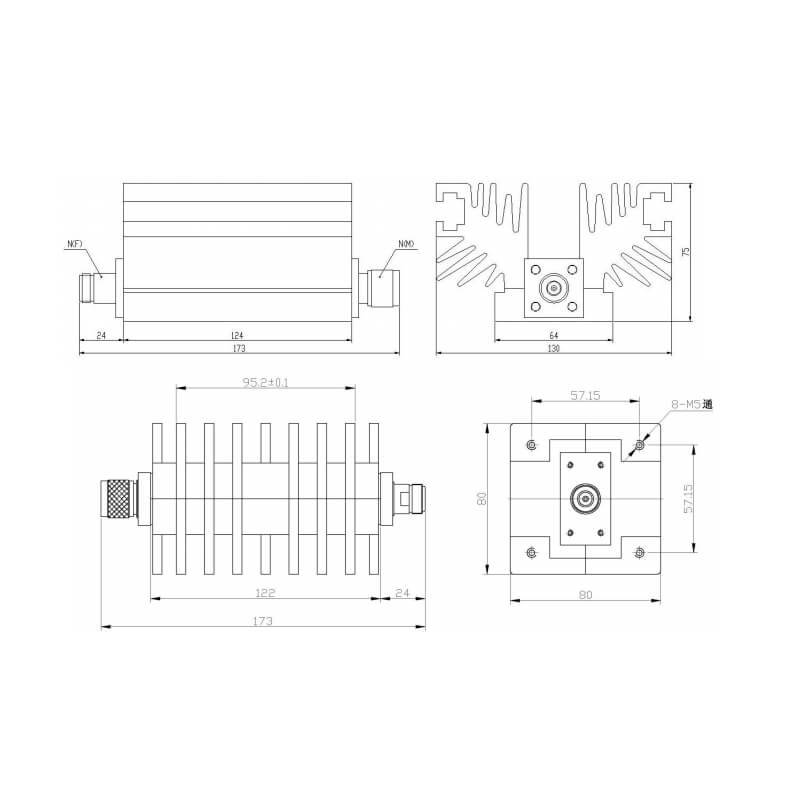

Dimension A:173×130×75mm; B:173×78×78mm
Weight A:1.5Kg; B:1.2Kg

DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD

Application:

150W DC-6GHz coaxial fixed attenuator is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
