Project Description

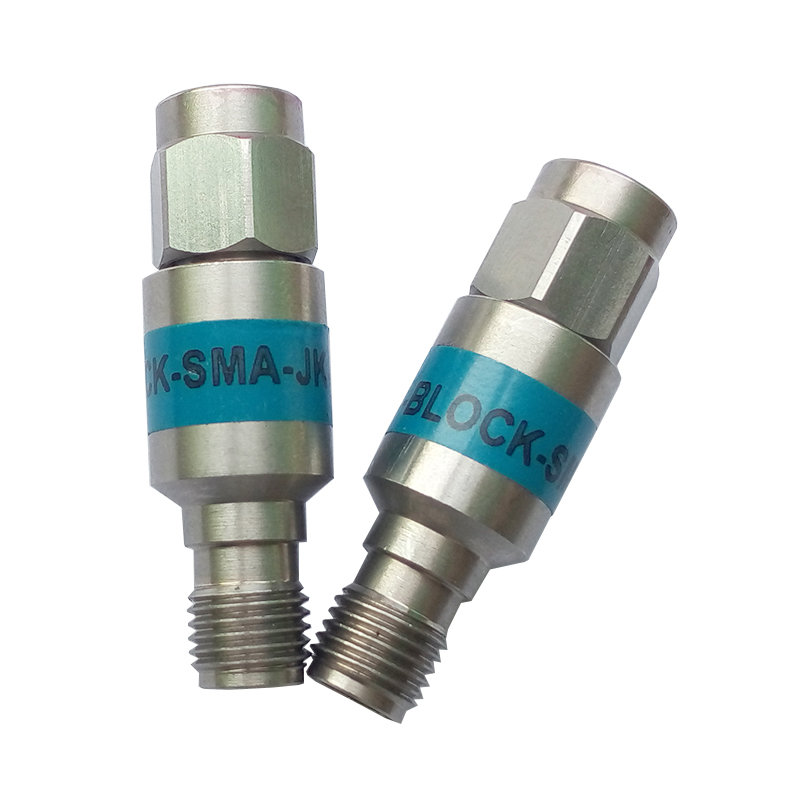

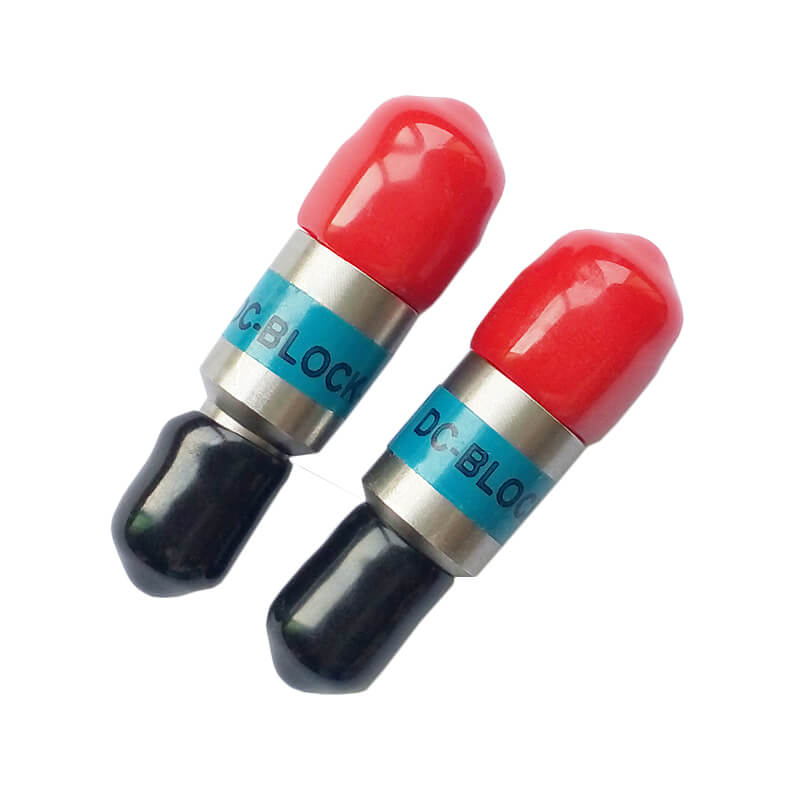

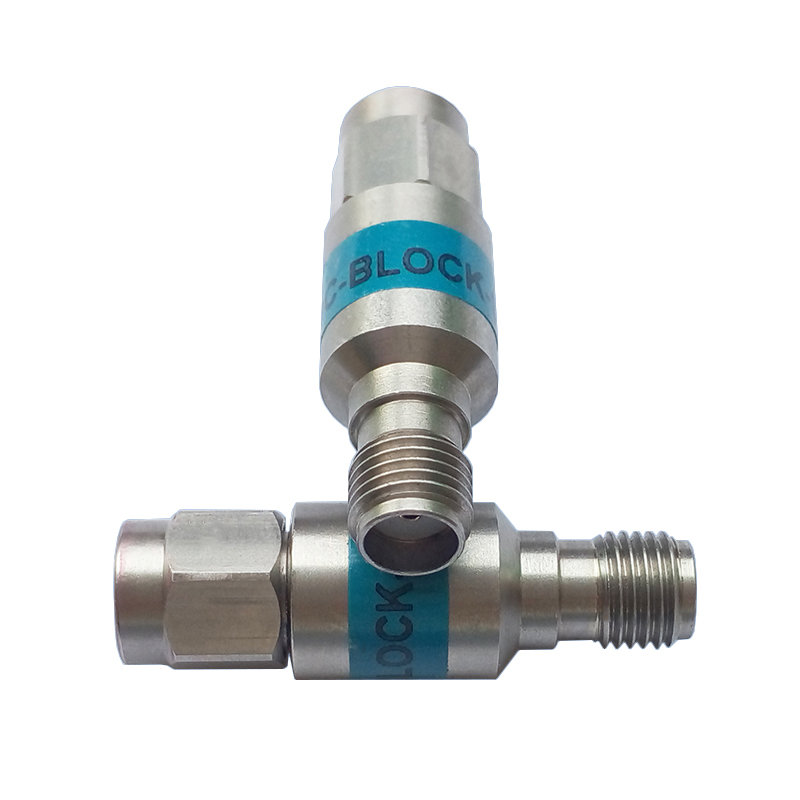

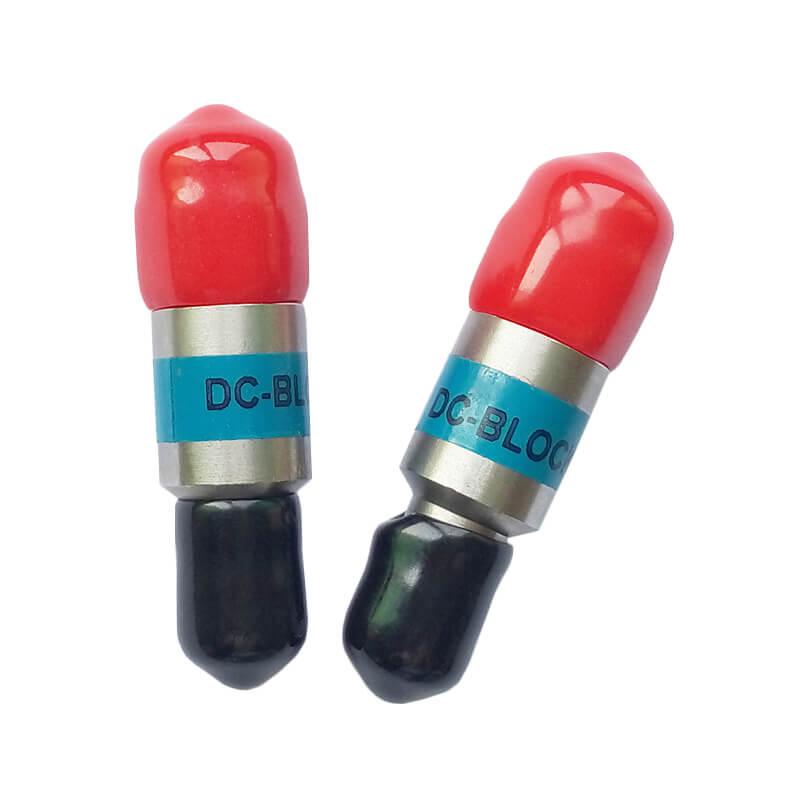

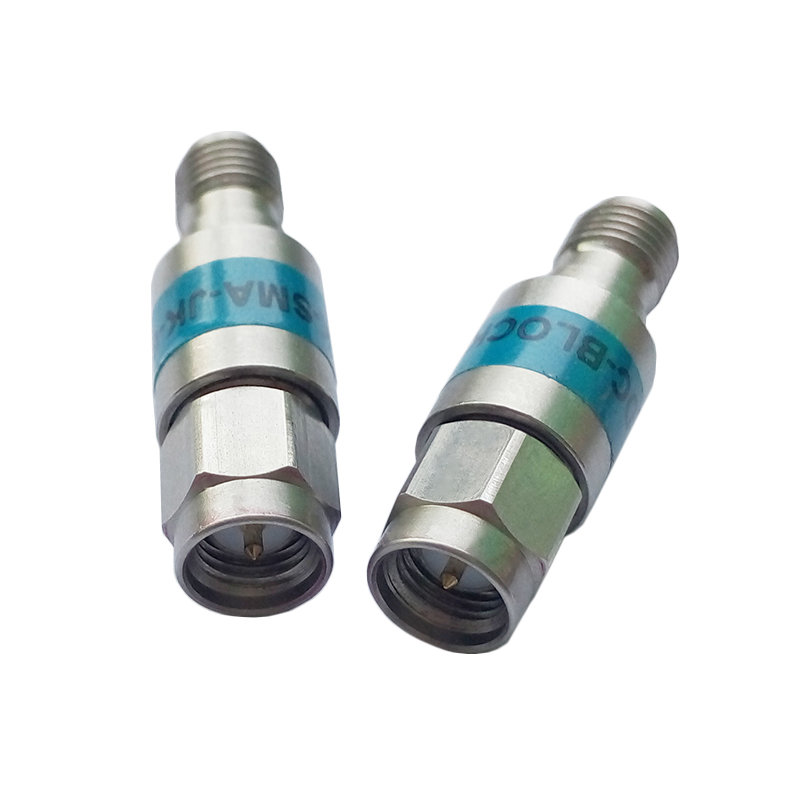

2W SMA-JK stainless steel DC Block

Specification Parameter
Model BC-BL02-01
Power 2W
Connector SMA-JK
Frequency Range DC-6GHz
Volatage 50V
VSWR (MAX) 1.2:1
Insertion loss 1db
Tolerance ±2%Max
Impendance 50Ω
Temperature Range -55°C to +125°C

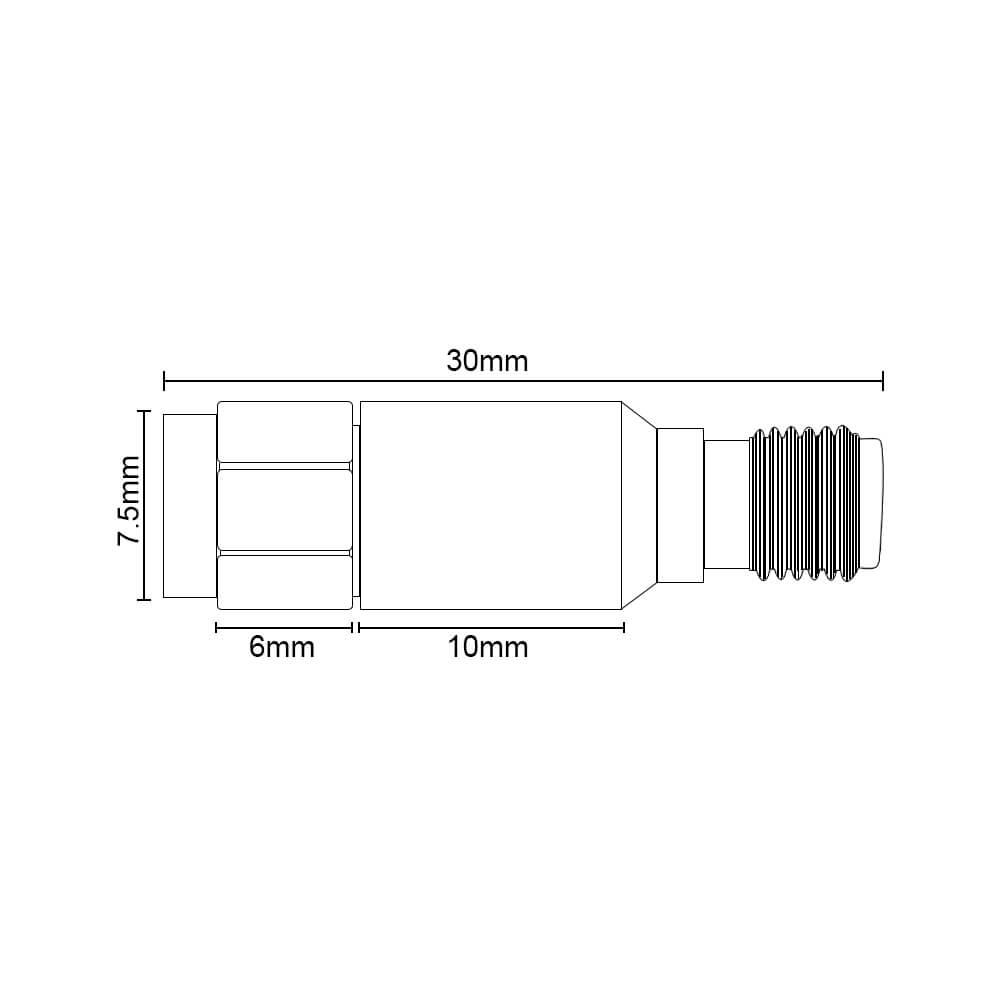

Dimension 30*9mm
Weight 8g
DOWNLOAD

Download the manual you need!

This is the place where you could download our manual of the product.
DOWNLOAD
TEST REPORT

TEST REPORT

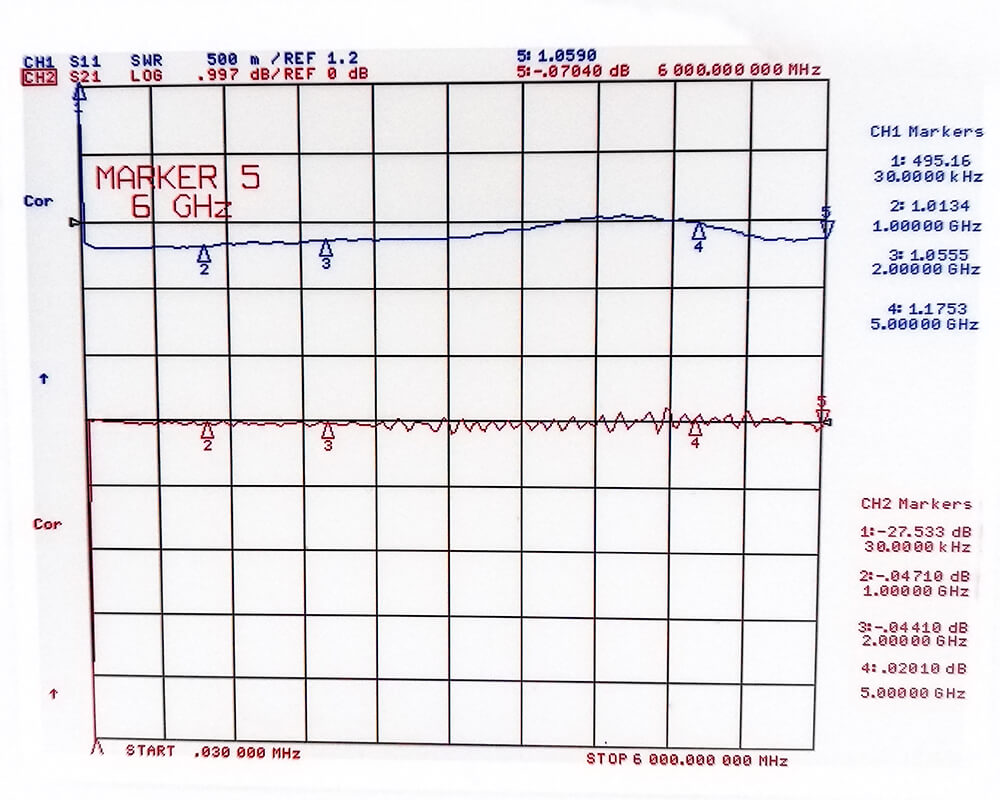

This is the test report of DC Block. If you want to see more report of the item, please contact us now.
TEST REPORT

Application:

2W sma dc blocks is widely used in below fileds:

  • Mobile Communication Network Optimization and In-door distribution system.

  • Cluster communication, satellite communication, shortwave communication and hopping radio.

  • Radar, electronic navigation and electronic confrontation.

  • Aerospace equipment systems
