Project Description

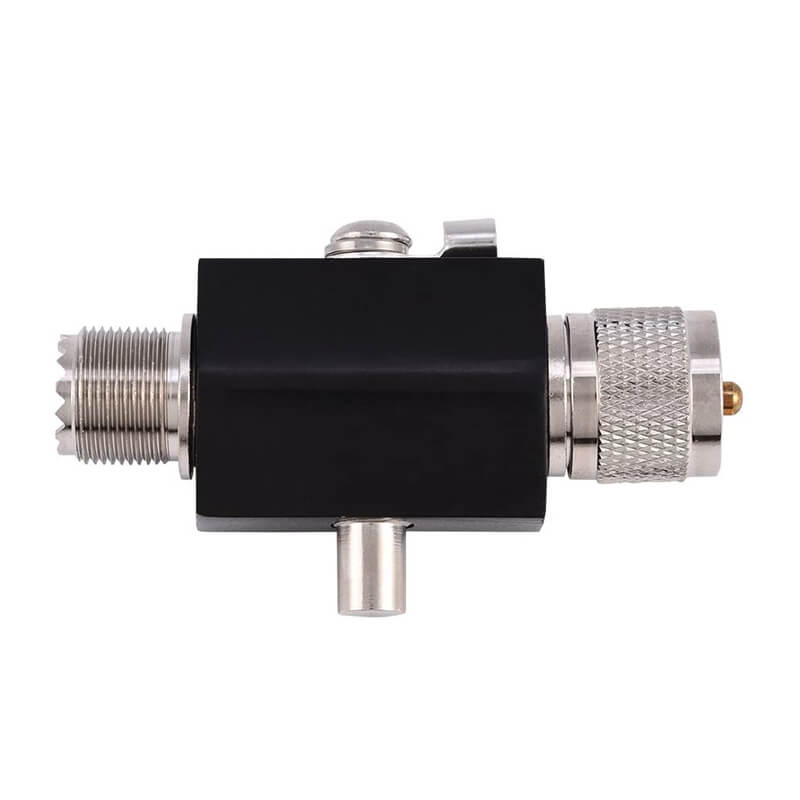

UHF Male to Female CA-35RS Coaxial Surge Protector Arrester
| Specification | Parameter |
|---|---|
| Model | CA-35RS |
| Peak Power | 200W |
| Connector | UHF-JK / N-JK |
| Frequency Range | DC-2.5GHz |
| Voltage | DC 230A |
| Current | 500A |
| Impendance | 50Ω |
| Voltage standing wave ratio | ≤1.1 |
| Dimension | 78 * 41 * 20mm |
| Weight | 105g |
Download the manual you need!
This is the place where you could download our manual of the product.
TEST REPORT
TEST REPORT
This is the test report of one attenuation. if you want to see me report of attenuation , please contact us now.
TEST REPORTApplication:

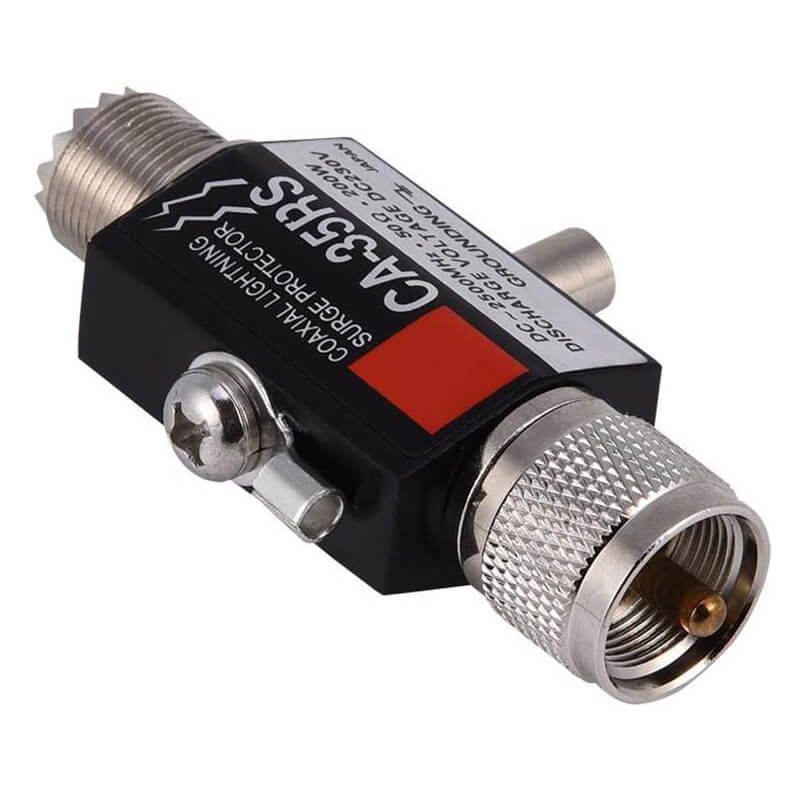

CA-35RS Coaxial Surge Protector, Male to Female UHF Connector Lightning Surge Protector Arrester
BUILT-IN GAS-CHARGING SURGE ARRESTOR ELEMENT
The lightning surge protector is designed with a stress on high safety, this device has a built-in gas-charging surge arrestor element which discharges and grounds the surge at the moment the surge voltage exceeds a specified level.ASSURES EXCELLENT HIGH FREQUENCY CHARACTERISTICS
The coaxial construction of this device assures excellent high frequency characteristics, wide bandwidth and low loss and VSWR.CAN REPEATEDLY SURGE DISCHARGE AND RESTORATION
This device makes the actions of surge discharge and restoration as repeatedly as necessary. No replacement is practically needed.
